DTC B0090-87: Left Frontal Restraints Sensor Missing Message [11/2023 - ]: Procedure

  1. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

      Procedure1

    3. Check that the connectors are properly connected to the airbag sensor assembly and front airbag sensor LH.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK CONNECTORS

    Pre-procedure1

    1. Disconnect the airbag sensor assembly connector.
      GTY973644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Disconnect the front airbag sensor LH connector.

      Procedure1

    3. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-2 (+SL) - A49-1 (-SL) Always 1 MΩ or higher
      GTY1178445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

    Pre-procedure1

    1. Using a service wire, connect terminals 30 (+SL) and 31 (-SL) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

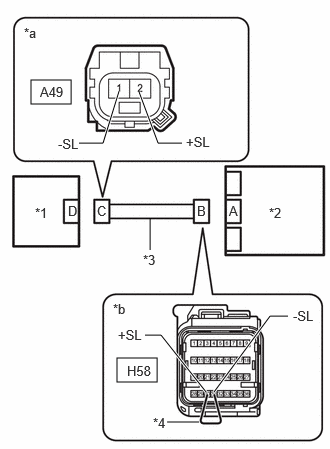

      GTY1178028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *4 Service Wire
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-2 (+SL) - A49-1 (-SL) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. Disconnect the service wire from connector B.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-2 (+SL) - Body ground Always 1 MΩ or higher
      A49-1 (-SL) - Body ground Always 1 MΩ or higher
      GTY1178445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

    Pre-procedure1

    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    2. Turn the ignition switch to ON.

      Procedure1

    3. Measure the voltage according to the value(s) in the table below.
      GTY1178445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)

      Standard Voltage

      Tester Connection Condition Specified Condition
      A49-2 (+SL) - Body ground Ignition switch ON Below 1 V
      A49-1 (-SL) - Body ground Ignition switch ON Below 1 V

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CLEAR DTC

    Pre-procedure1

    1. Connect the airbag sensor assembly connector.
      GTY973661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Interchange the front airbag sensor LH with RH and connect the connectors to them.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.

      Procedure1

    5. Clear the DTCs stored in memory.

      Body Electrical > SRS Airbag > Clear DTCs

      Result

      Proceed to
      NEXT

      Post-procedure1

    6. Turn the ignition switch off.

    Result:

    NEXT

    See step  8

  8. CHECK FRONT AIRBAG SENSOR LH

    Pre-procedure1

    1. Turn the ignition switch to ON, and wait for at least 60 seconds.

      Procedure1

    2. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result Proceed to
      B0090-87 is output A
      B0095-87 is output B
      B0090-87 and B0095-87 are not output C

      HINT:

      Codes other than DTCs B0090-87 and B0095-87 may be output at this time, but they are not related to this check.

      Post-procedure1

    3. Turn the ignition switch off.
    4. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    5. Return the front airbag sensor RH and LH to their original positions and connect the connectors to them.

    Result:

    A

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [11/2023 - ]

    Result:

    B

    REPLACE FRONT AIRBAG SENSOR LH. Refer to  REMOVAL [11/2023 - ]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]
