DTC B0052-00: Passenger Seat Belt Sensor Circuit Undetermined Failure [11/2023 - ]: Procedure
- CHECK VEHICLE CONDITION
Result:
B
See step 10
Result:
A
See step 2
- CHECK CONNECTION OF CONNECTORS
Pre-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Procedure1
- Check that the connectors are properly connected to the airbag sensor assembly and front seat inner belt assembly RH.
OK
The connectors are properly connected.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 3
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the airbag sensor assembly connector.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness - Disconnect the front seat inner belt assembly RH connector.
Procedure1
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Disconnect the airbag sensor assembly connector.
- INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
Pre-procedure1
- Remove the front seat inner belt assembly RH.
Refer to REMOVAL [11/2023 - ]
Procedure1
- Inspect the front seat inner belt assembly RH.
*1 Front Seat Inner Belt Assembly RH *2 Auxiliary Battery *a Component without harness connected
(Front Seat Inner Belt Assembly RH)*b Tester Standard Current
Tester Connection Condition Specified Condition Tester positive (+) - 2
Tester negative (-) - Auxiliary battery negative (-)Seat belt fastened 12.0 to 18.0 mA Seat belt not fastened 4.0 to 7.0 mA Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPLACE FRONT SEAT INNER BELT ASSEMBLY RH. Refer to REMOVAL [11/2023 - ]
Result:
OK
See step 5
- Remove the front seat inner belt assembly RH.
- CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
Pre-procedure1
- Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.

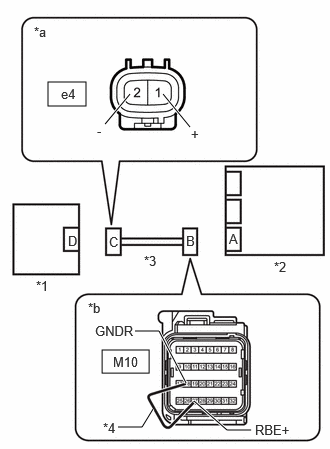

*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *4 Service Wire *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)*b Front view of wire harness connector
(to Airbag Sensor Assembly)NOTE:Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition e4-1 (+) - e4-2 (-) Always Below 1 Ω Result
Proceed to OK NG Post-procedure1
- Disconnect the service wire from connector B.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition e4-1 (+) - Body ground Always 1 MΩ or higher e4-2 (-) - Body ground Always 1 MΩ or higher *1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON.
Procedure1
- Measure the voltage according to the value(s) in the table below.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)Standard Voltage
Tester Connection Condition Specified Condition e4-1 (+) - Body ground Ignition switch ON Below 1 V e4-2 (-) - Body ground Ignition switch ON Below 1 V Result
Proceed to OK NG Post-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- CLEAR DTC
Pre-procedure1
- Connect the airbag sensor assembly connector.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness - Connect the front seat inner belt assembly RH connector.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
Procedure1
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT Post-procedure1
- Turn the ignition switch off.
Result:
NEXT
See step 9
- Connect the airbag sensor assembly connector.
- CHECK DTC
Pre-procedure1
- Turn the ignition switch to ON, and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0052-00 is output A B0052-00 is not output B HINT:
Codes other than DTC B0052-00 may be output at this time, but they are not related to this check.
Post-procedure1
- None
Result:
A
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [11/2023 - ]
Result:
B
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- CHECK CONNECTION OF CONNECTORS
Pre-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Procedure1
- Check that the connectors are properly connected to the airbag sensor assembly and front seat inner belt assembly RH.
OK
The connectors are properly connected.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 11
- CHECK CONNECTORS
Pre-procedure1
- Disconnect the airbag sensor assembly connector.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness - Disconnect the front seat inner belt assembly RH connector.
Procedure1
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 12
- Disconnect the airbag sensor assembly connector.
- INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
Pre-procedure1
- Remove the front seat inner belt assembly RH.
Refer to REMOVAL [11/2023 - ]
Procedure1
- Inspect the front seat inner belt assembly RH.
*1 Front Seat Inner Belt Assembly RH *2 Auxiliary Battery *a Component without harness connected
(Front Seat Inner Belt Assembly RH)*b Tester Standard Current
Tester Connection Condition Specified Condition Tester positive (+) - 2
Tester negative (-) - Auxiliary battery negative (-)Seat belt fastened 12.0 to 18.0 mA Seat belt not fastened 4.0 to 7.0 mA Result
Proceed to OK NG Post-procedure1
- None
Result:
NG
REPLACE FRONT SEAT INNER BELT ASSEMBLY RH. Refer to REMOVAL [11/2023 - ]
Result:
OK
See step 13
- Remove the front seat inner belt assembly RH.
- CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
Pre-procedure1
- Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.

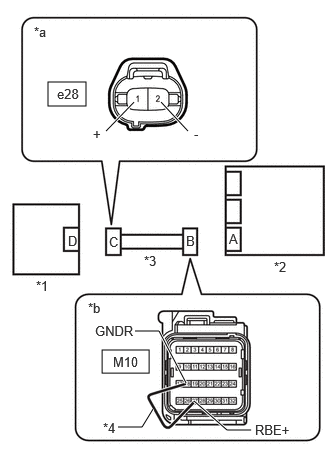

*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *4 Service Wire *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)*b Front view of wire harness connector
(to Airbag Sensor Assembly)NOTE:Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Procedure1
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition e28-1 (+) - e28-2 (-) Always Below 1 Ω Result
Proceed to OK NG Post-procedure1
- Disconnect the service wire from connector B.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 14
- Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition e28-1 (+) - Body ground Always 1 MΩ or higher e28-2 (-) - Body ground Always 1 MΩ or higher *1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 15
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)
Pre-procedure1
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON.
Procedure1
- Measure the voltage according to the value(s) in the table below.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH)Standard Voltage
Tester Connection Condition Specified Condition e28-1 (+) - Body ground Ignition switch ON Below 1 V e28-2 (-) - Body ground Ignition switch ON Below 1 V Result
Proceed to OK NG Post-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 16
- CLEAR DTC
Pre-procedure1
- Connect the airbag sensor assembly connector.
*1 Front Seat Inner Belt Assembly RH *2 Airbag Sensor Assembly *3 Wire Harness - Connect the front seat inner belt assembly RH connector.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
Procedure1
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
Result
Proceed to NEXT Post-procedure1
- Turn the ignition switch off.
Result:
NEXT
See step 17
- Connect the airbag sensor assembly connector.
- CHECK DTC
Pre-procedure1
- Turn the ignition switch to ON, and wait for at least 60 seconds.
Procedure1
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to B0052-00 is output A B0052-00 is not output B HINT:
Codes other than DTC B0052-00 may be output at this time, but they are not related to this check.
Post-procedure1
- None
Result:
A
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [11/2023 - ]
Result:
B
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]
- Turn the ignition switch to ON, and wait for at least 60 seconds.
