Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

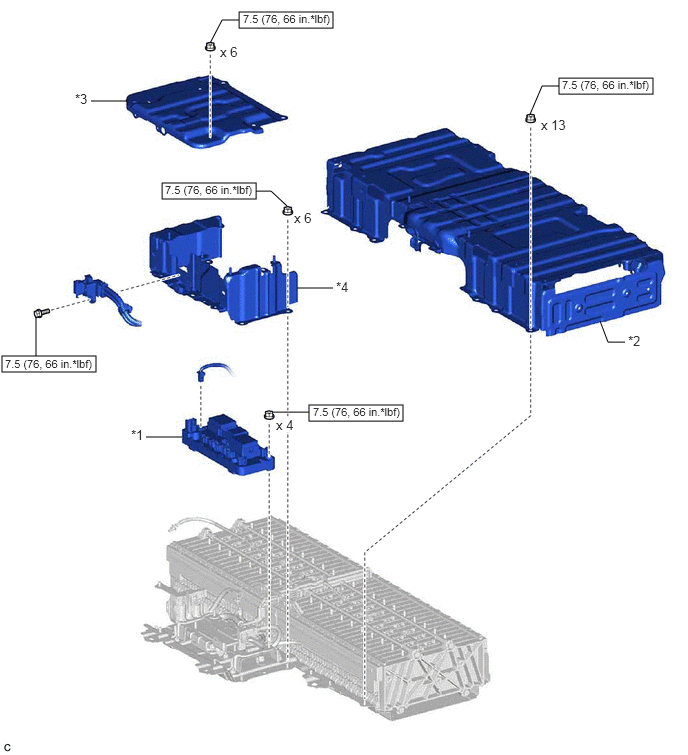

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HV BATTERY JUNCTION BLOCK ASSEMBLY | *2 | UPPER HV BATTERY COVER SUB-ASSEMBLY |
| *3 | NO. 10 HV BATTERY SHIELD PANEL | *4 | NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

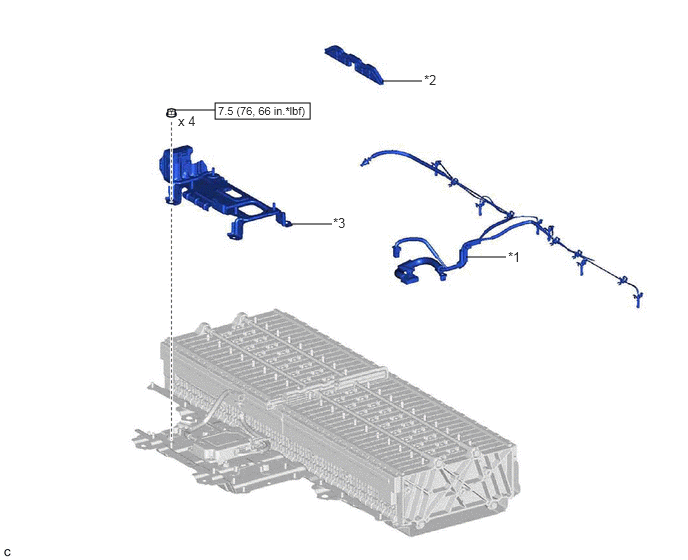

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HYBRID BATTERY THERMISTOR | *2 | NO. 3 HYBRID BATTERY PACKING |
| *3 | NO. 6 HV BATTERY CARRIER BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
