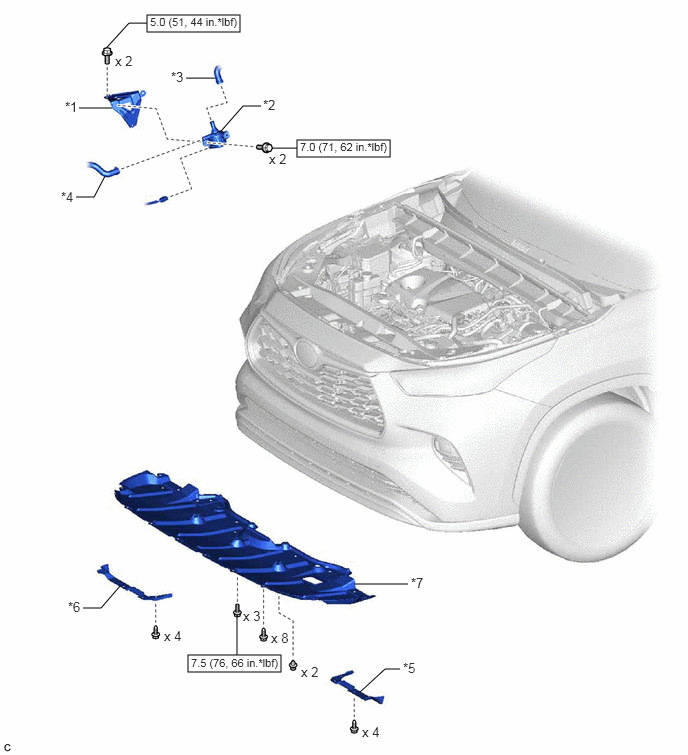

Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HV WATER PUMP BRACKET SUB-ASSEMBLY | *2 | INVERTER WATER PUMP ASSEMBLY |
| *3 | NO. 2 INVERTER COOLING HOSE | *4 | NO. 3 INVERTER COOLING HOSE |
| *5 | FRONT WHEEL OPENING EXTENSION PAD LH | *6 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *7 | NO. 1 ENGINE UNDER COVER | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
