Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

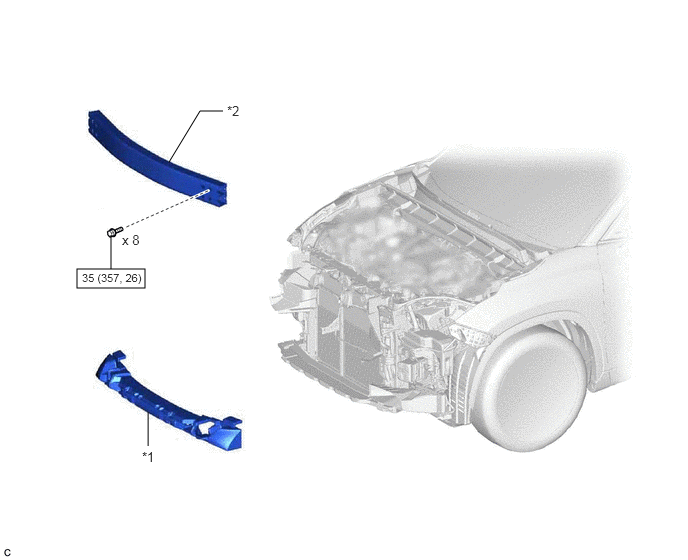

| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|

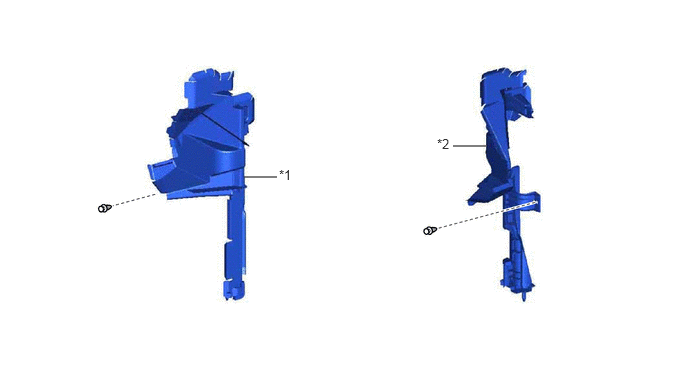

| *1 | NO. 1 RADIATOR AIR GUIDE RH | *2 | NO. 1 RADIATOR AIR GUIDE LH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

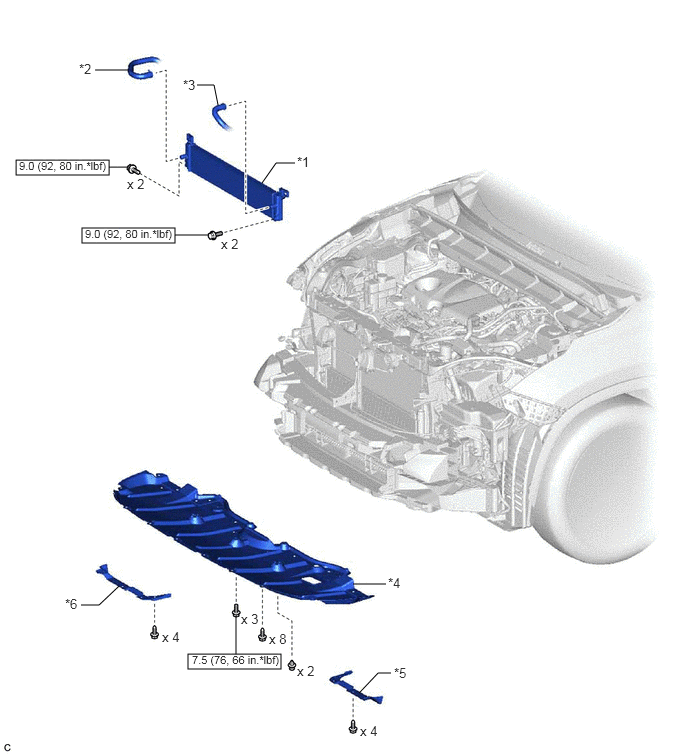

| *1 | RADIATOR ASSEMBLY (for Inverter Coolant) | *2 | NO. 3 INVERTER COOLING HOSE |
| *3 | NO. 4 INVERTER COOLING HOSE | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | FRONT WHEEL OPENING EXTENSION PAD LH | *6 | FRONT WHEEL OPENING EXTENSION PAD RH |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
