Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: Frame Wire Replacement Components (1 Of 7)
GTY918561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HYBRID BATTERY SERVICE PLUG COVER *2 SERVICE PLUG GRIP
Fig 2: Frame Wire Replacement Components With Torque Specifications (2 Of 7)
GTY905172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CONNECTOR COVER ASSEMBLY *2 ENGINE ROOM MAIN WIRE
*3 NO. 2 INVERTER PROTECTOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

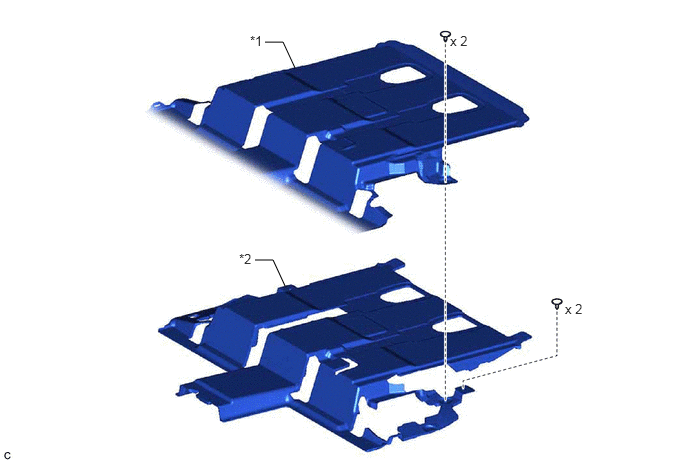

Fig 3: Frame Wire Replacement Components (3 Of 7)
GTY921923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FLOOR CARPET ASSEMBLY *2 REAR FLOOR SILENCER

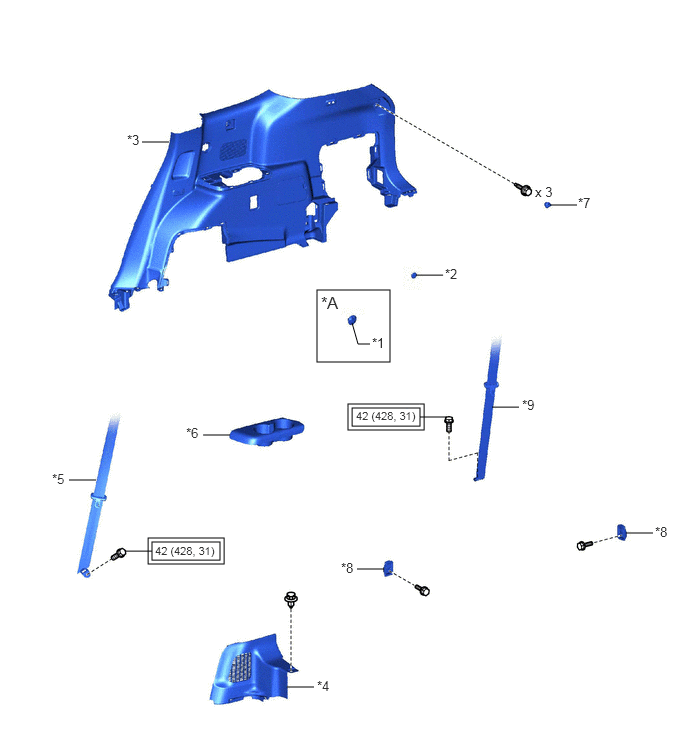

Fig 4: Frame Wire Replacement Components With Torque Specifications (4 Of 7)
GTY864037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Rear Automatic Air Conditioning System - -
*1 COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR *2 DECK TRIM POCKET COVER
*3 DECK TRIM SIDE PANEL ASSEMBLY RH *4 FRONT DECK SIDE TRIM COVER RH
*5 REAR SEAT OUTER BELT ASSEMBLY RH *6 NO. 1 DECK SIDE TRIM COVER
*7 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK *8 ROPE HOOK
*9 REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -

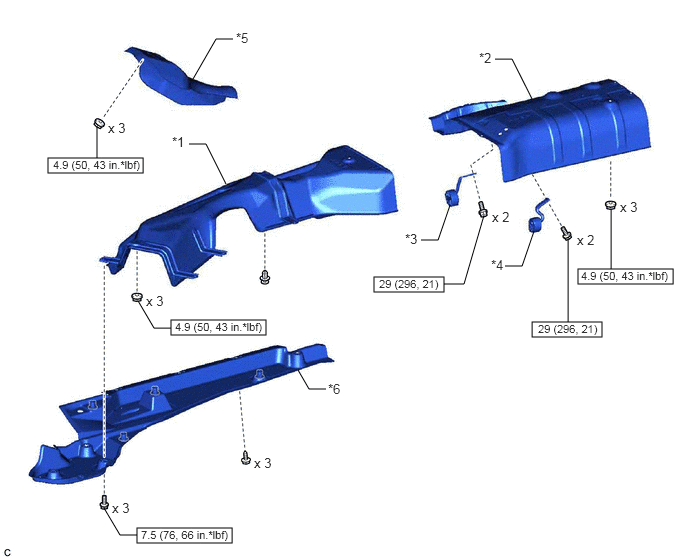

Fig 5: Frame Wire Replacement Components With Torque Specifications (5 Of 7)
GTY922365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE SERVICE COVER ASSEMBLY *2 REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY
*3 NO. 3 EXHAUST PIPE SUPPORT BRACKET *4 NO. 4 EXHAUST PIPE SUPPORT BRACKET
*5 FRONT NO. 1 FLOOR HEAT INSULATOR *6 FRONT FLOOR COVER RH
N.m (kgf/cm, ft.lbf): Specified torque - -

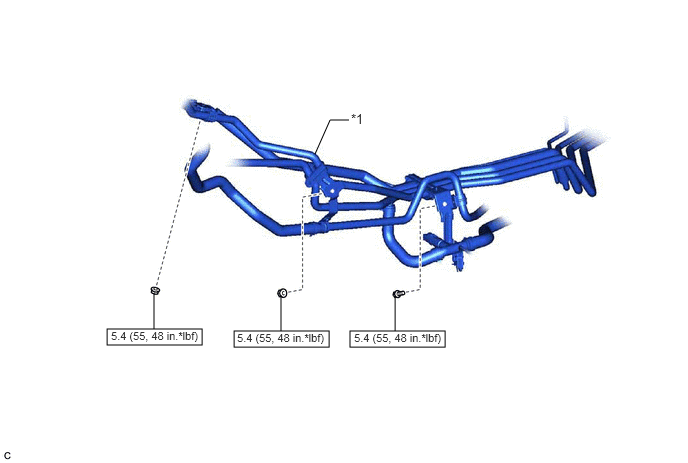

Fig 6: Frame Wire Replacement Components With Torque Specifications (6 Of 7)
GTY879928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 AIR CONDITIONING ACCESSORY ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -

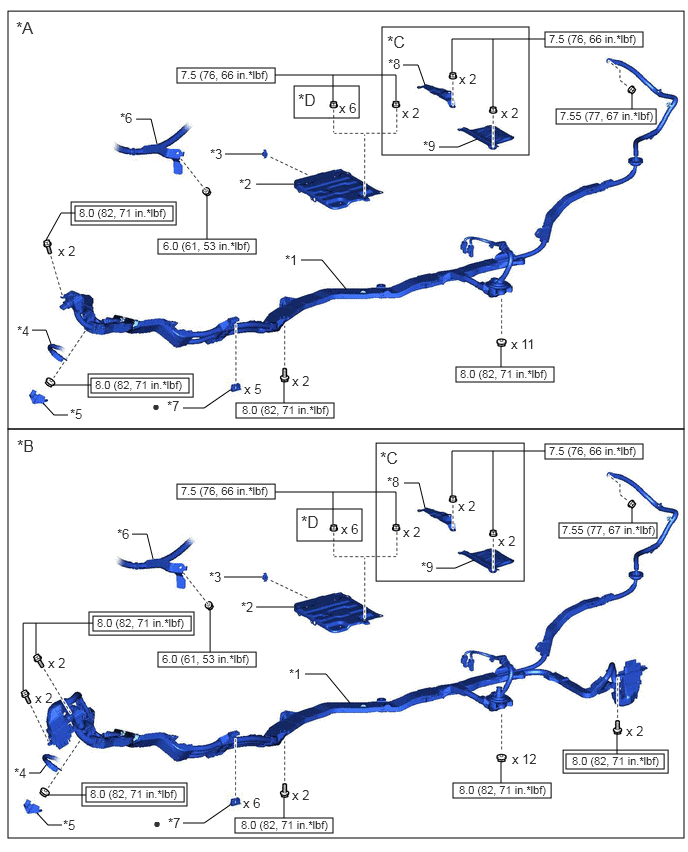

Fig 7: Frame Wire Replacement Components With Torque Specifications (7 Of 7)
GTY943617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD *B for AWD
*C for Captain Seat Type *D for 60/40 Split Seat Type
*1 HV FLOOR UNDER WIRE *2 NO. 10 HV BATTERY SHIELD PANEL
*3 BATTERY COVER LOCK STRIKER *4 ENGINE ROOM MAIN WIRE
*5 NO. 1 TERMINAL CAP *6 TRANSMISSION CONTROL CABLE ASSEMBLY
*7 CLAMP *8 NO. 3 CONSOLE BOX MOUNTING BRACKET
*9 NO. 4 CONSOLE BOX MOUNTING BRACKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -
