Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.

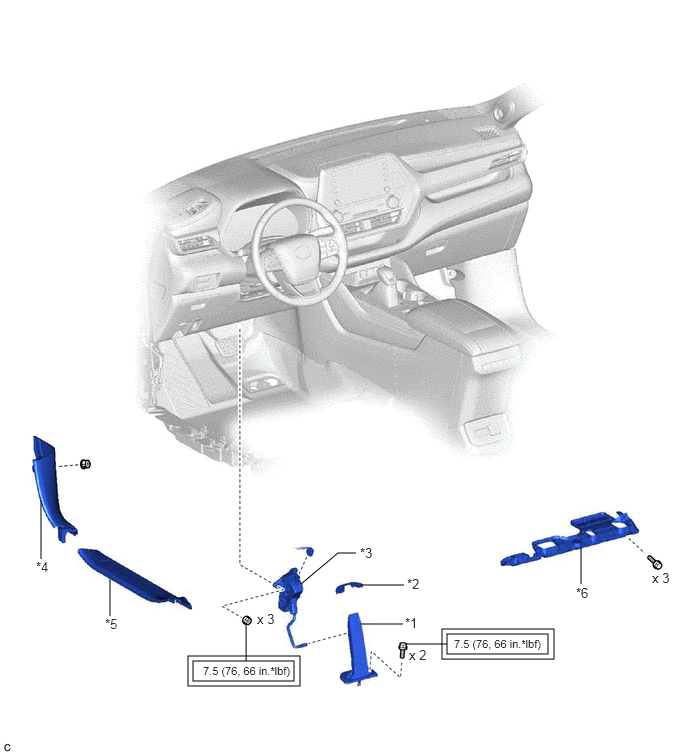

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ACCELERATOR PEDAL | *2 | ACCELERATOR PEDAL PAD |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | COWL SIDE TRIM SUB-ASSEMBLY LH |
| *5 | FRONT DOOR SCUFF PLATE LH | *6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
