Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Combination Switch Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CONSOLE BOX COVER	*2	CONSOLE BOX CUSHION
*3	NO. 2 CONSOLE BOX CUSHION	-	-

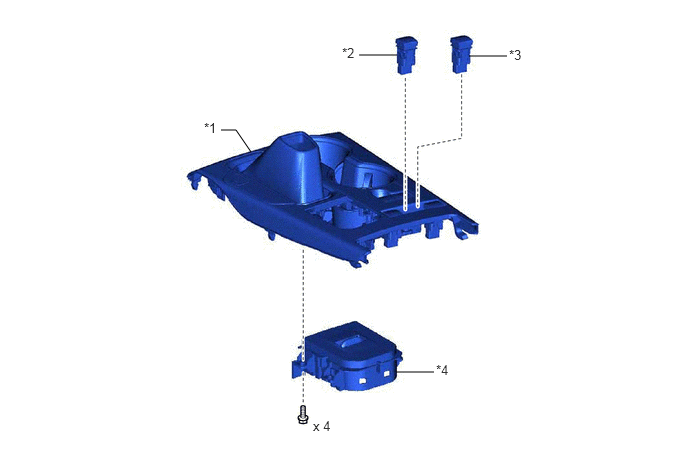

Fig 2: Combination Switch Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*1	CONSOLE PANEL SUB-ASSEMBLY	*2	EV MODE SWITCH (PATTERN SELECT SWITCH ASSEMBLY)
*3	TRAIL SWITCH (PATTERN SELECT SWITCH)	*4	NO. 1 PATTERN SELECT SWITCH ASSEMBLY
