Installation [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SERVICE PLUG GRIP
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

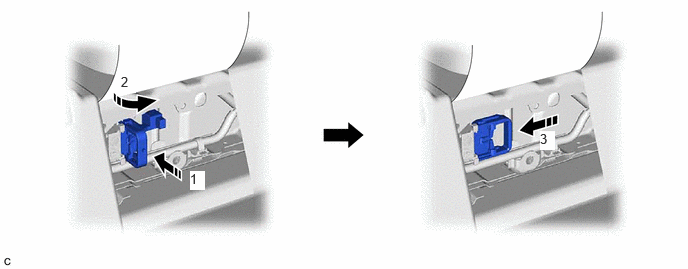

    1. While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.
      GTY903791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the handle of the service plug grip 90° toward the HV battery and slide it in the direction indicated by the arrow (3) shown in the illustration until a click sound is heard to install the service plug grip.
  2. INSTALL HYBRID BATTERY SERVICE PLUG COVER
    WARNING:

    Be sure to wear insulated gloves.

    1. Engage the clamp to install the hybrid battery service plug cover.
    2. Install the 2 clips.
    3. Return the front floor carpet assembly and rear floor silencer to its original position.
  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3
