Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HYBRID BATTERY SERVICE PLUG COVER | *2 | SERVICE PLUG GRIP |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| *3 | NO. 2 INVERTER PROTECTOR | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Captain Seat Type | *B | for 60/40 Split Seat Type |
| *C | w/ 1500w Voltage Inverter | - | - |

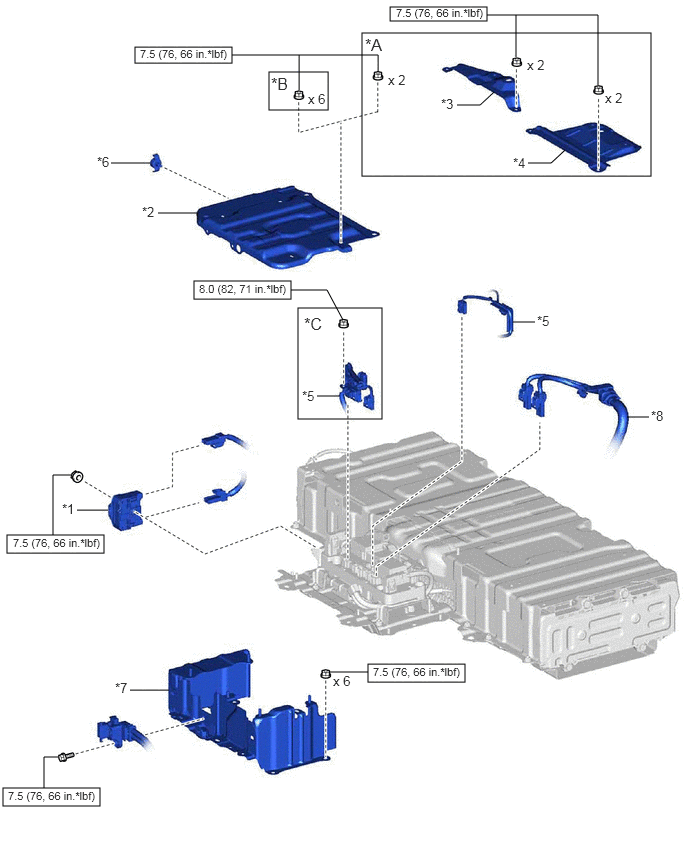

| *1 | HYBRID BATTERY TERMINAL BLOCK | *2 | NO. 10 HV BATTERY SHIELD PANEL |
| *3 | NO. 3 CONSOLE BOX MOUNTING BRACKET | *4 | NO. 4 CONSOLE BOX MOUNTING BRACKET |
| *5 | FLOOR WIRE | *6 | BATTERY COVER LOCK STRIKER |
| *7 | NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY | *8 | HV FLOOR UNDER WIRE |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
