Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |

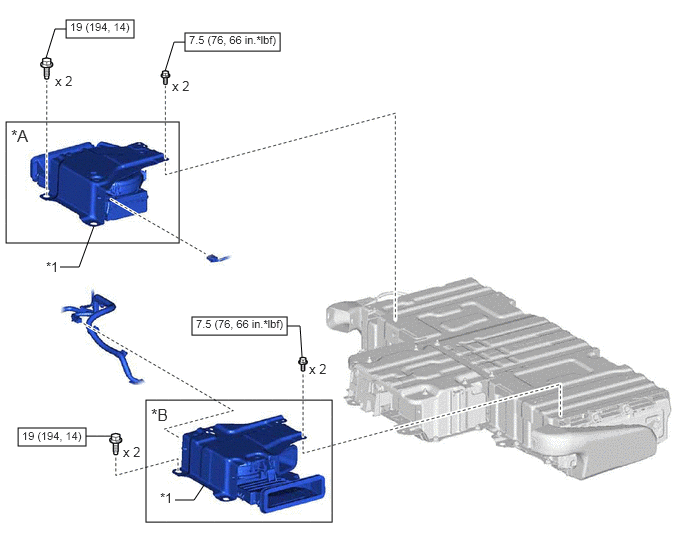

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for RH Side | *B | for LH Side |
| *1 | BLOWER SUB-ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

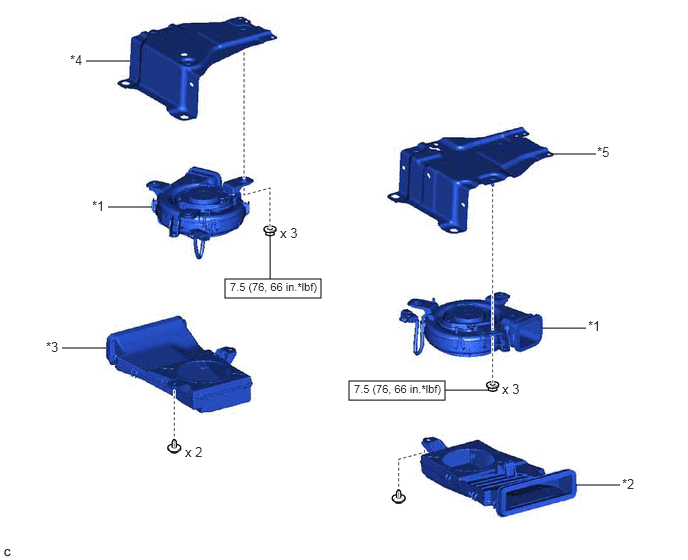

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY COOLING BLOWER ASSEMBLY | *2 | NO. 1 HV BATTERY INTAKE DUCT LH |
| *3 | NO. 1 HYBRID BATTERY INTAKE DUCT | *4 | NO. 1 BATTERY COOLING BRACKET |
| *5 | NO. 2 BATTERY COOLING BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
