Removal [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. DISCONNECT FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Disconnect the electric vehicle battery plug assembly connector.

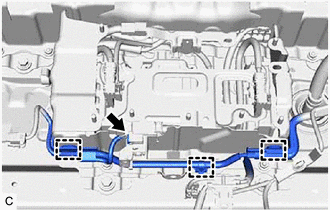

      GTY841361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps to disconnect the floor wire.
  3. REMOVE NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  4. REMOVE NO. 6 HV BATTERY CARRIER BRACKET
    WARNING:

    Be sure to wear insulated gloves.

    1. Disengage the clamp.

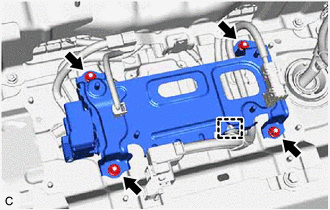

      GTY881151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and No. 6 HV battery carrier bracket.
  5. REMOVE BATTERY VOLTAGE SENSOR
    WARNING:

    Be sure to wear insulated gloves.

    1. Disconnect the 3 battery voltage sensor connectors.

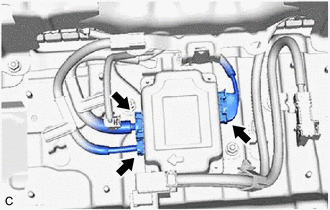

      GTY881152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

    2. Remove the 2 nuts and battery voltage sensor from the HV battery.
      NOTE:

      If the battery voltage sensor has been struck or dropped, replace it.

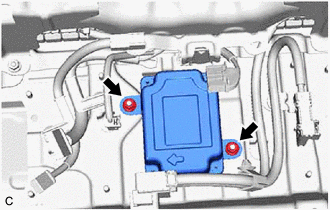

      GTY881138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
