Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE AIR CONDITIONER UNIT ASSEMBLY

    for Gasoline Model:

    Refer to REMOVAL [10/2022 - 11/2023]

    for HV Model:

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE BLOWER ASSEMBLY

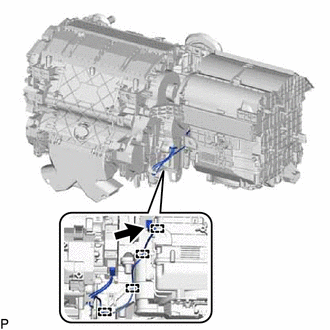

    1. Disconnect the connector.
      GTY923898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

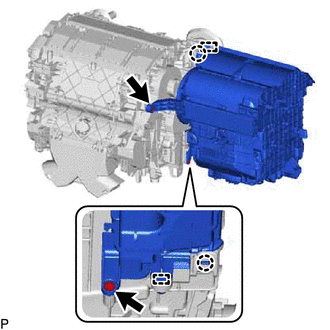

    2. Disengage each guide.
    3. Remove the 2 screws.
      GTY945092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and 2 guides and remove the blower assembly from the air conditioning radiator assembly.
