System Diagram [12/2019 - 10/2022]

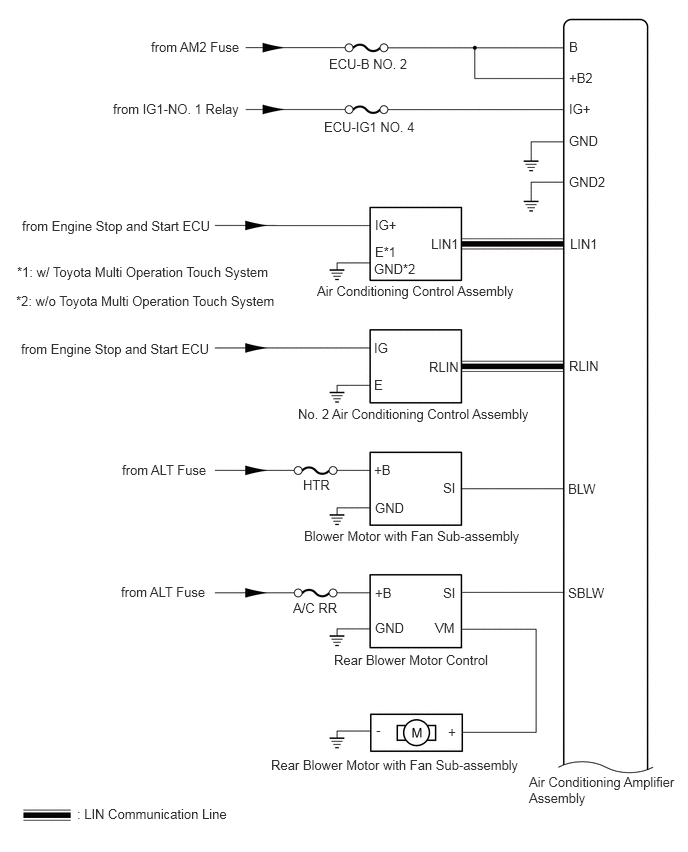

w/ Stop and Start System

GTY883642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

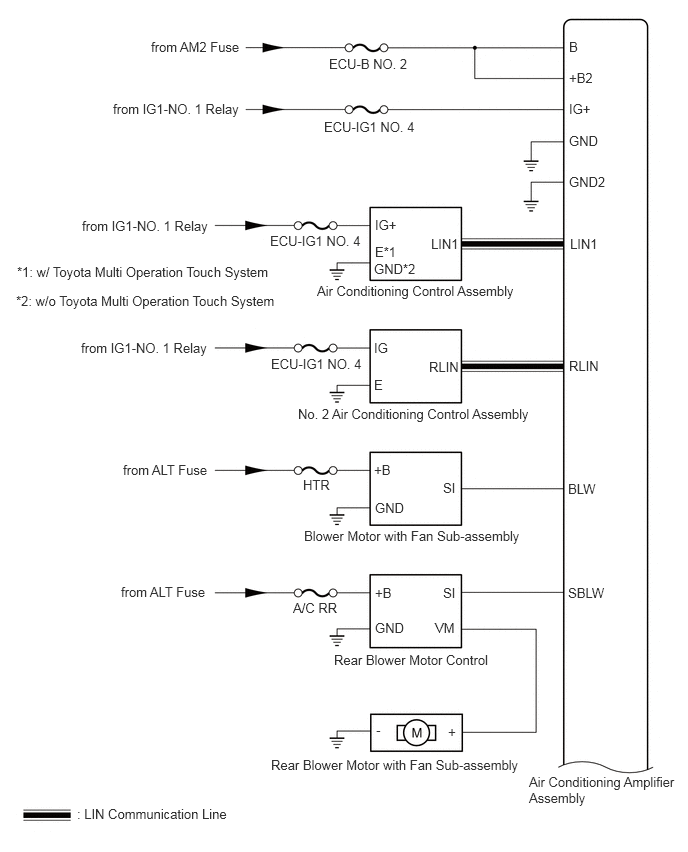

w/o Stop and Start System

GTY865265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

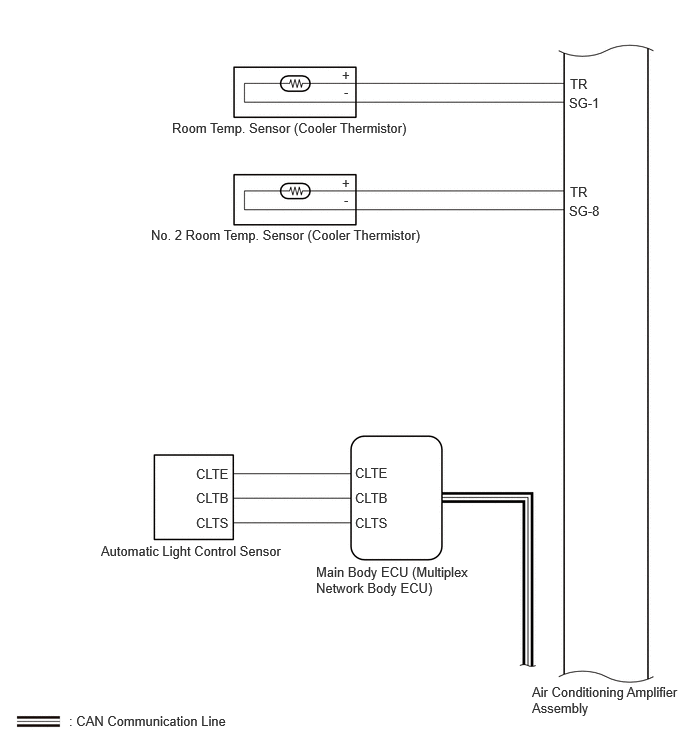

GTY889494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

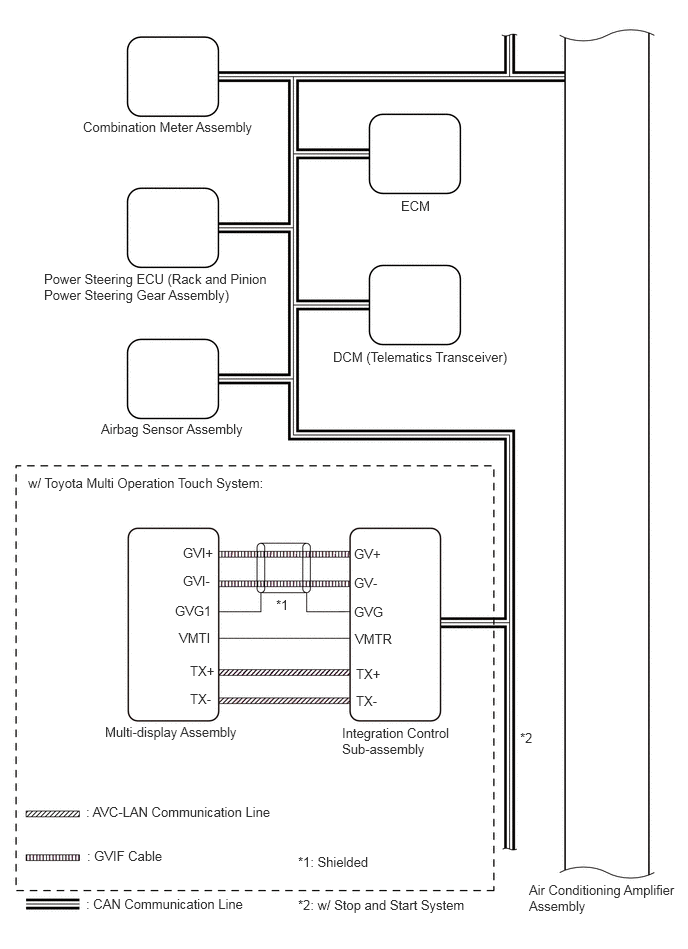

GTY873903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

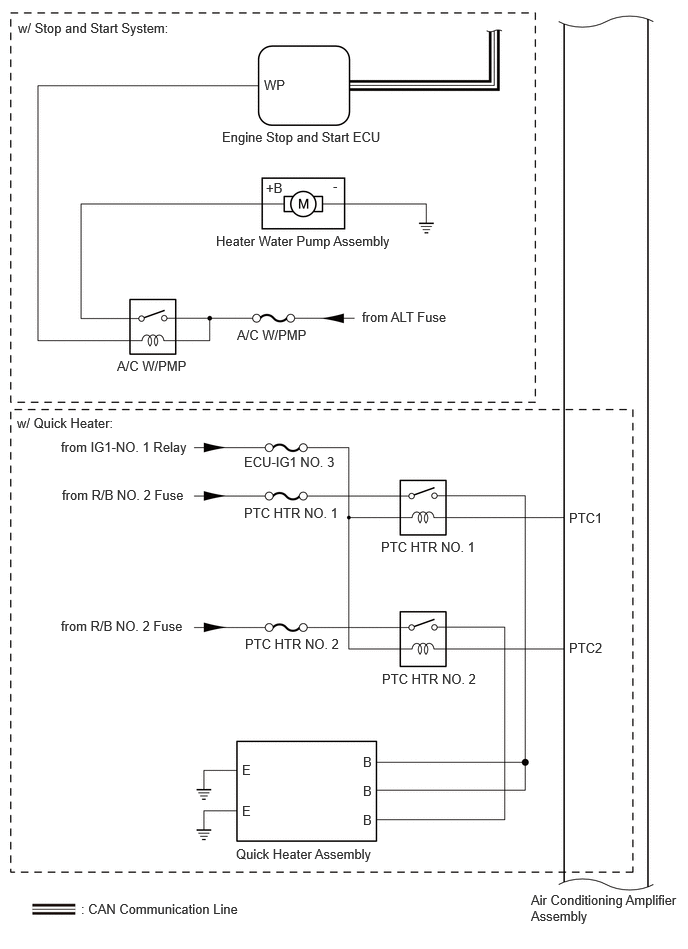

GTY876281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

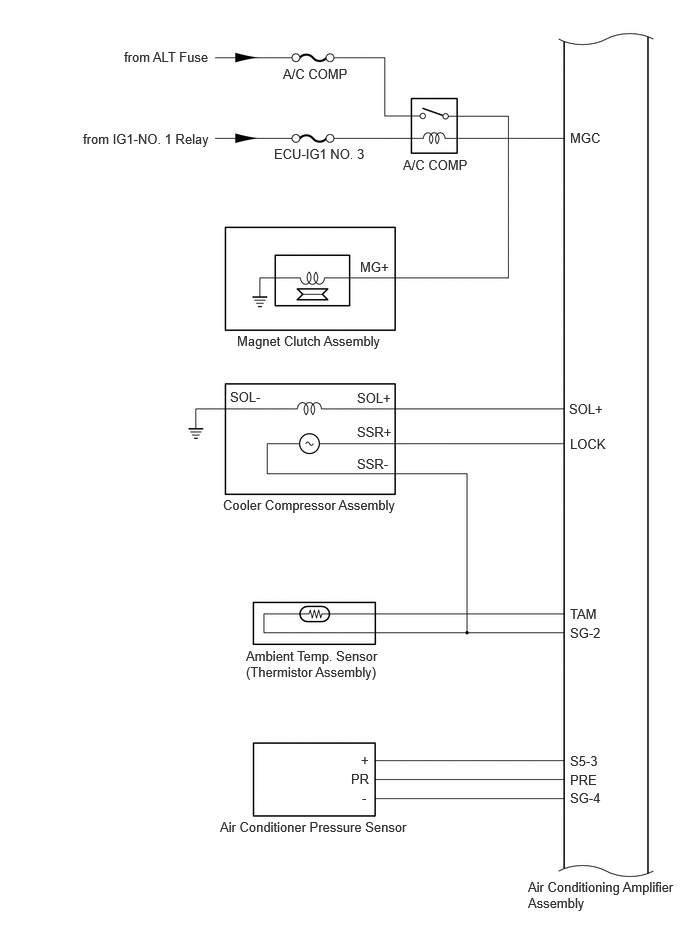

GTY885938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

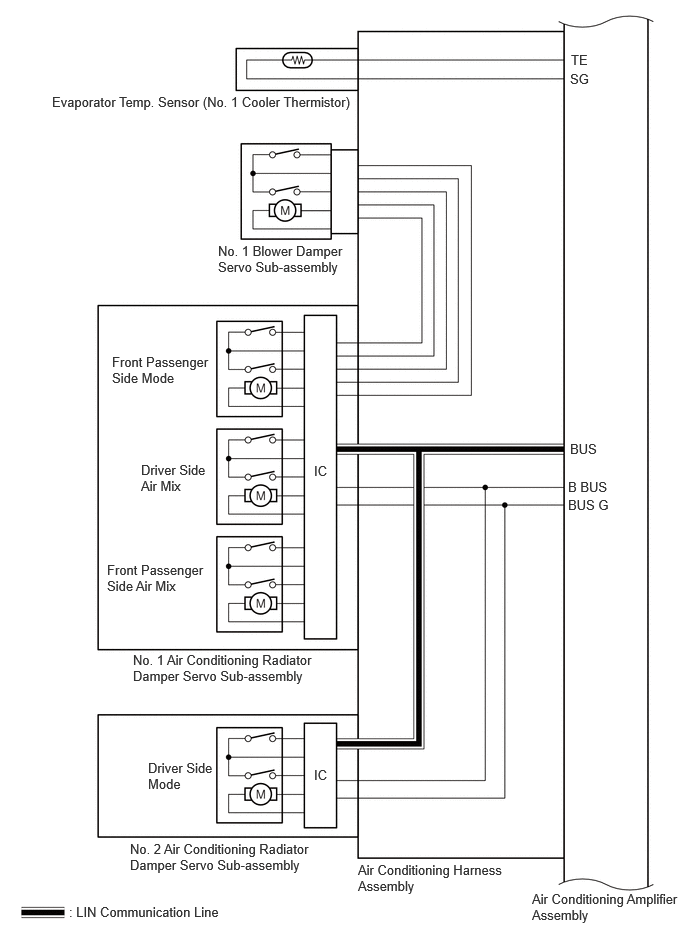

GTY894744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

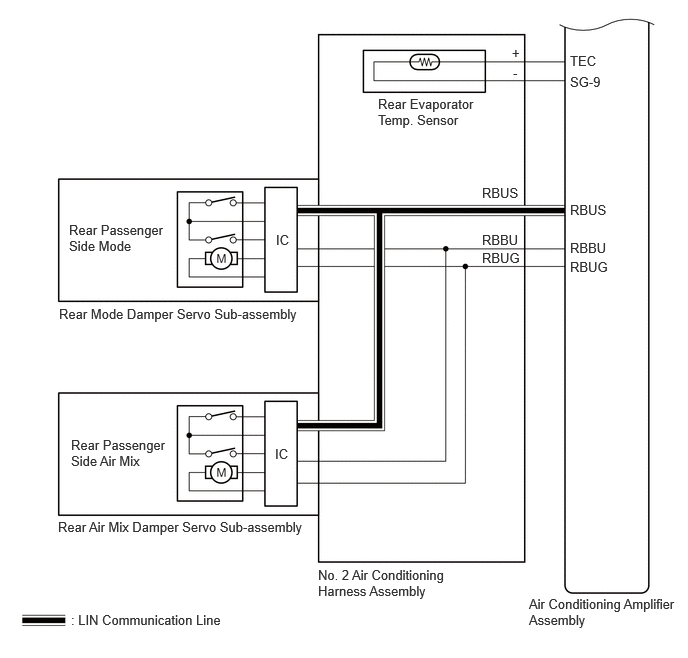

GTY943566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
