System Diagram [10/2022 - 11/2023]

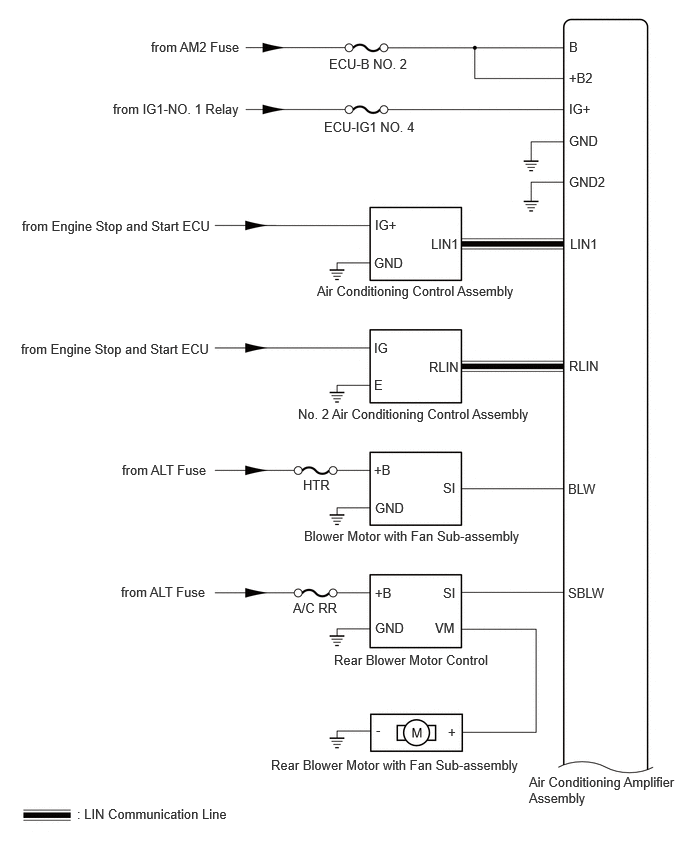

w/ Stop and Start System

GTY1110577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

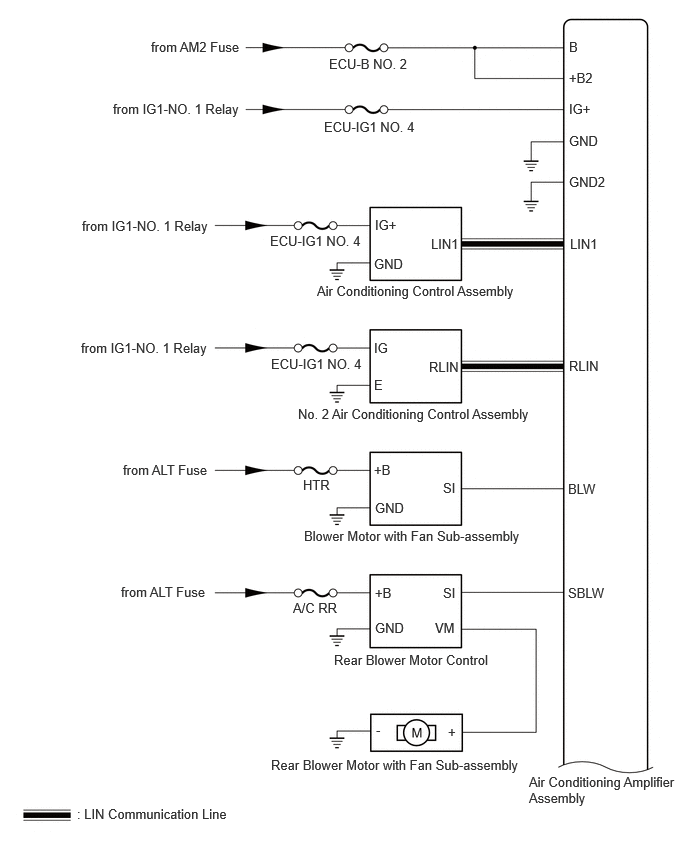

w/o Stop and Start System

GTY1111353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY889494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1122237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY876281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1119577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1120511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY943566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
