System Diagram [11/2023 - ]

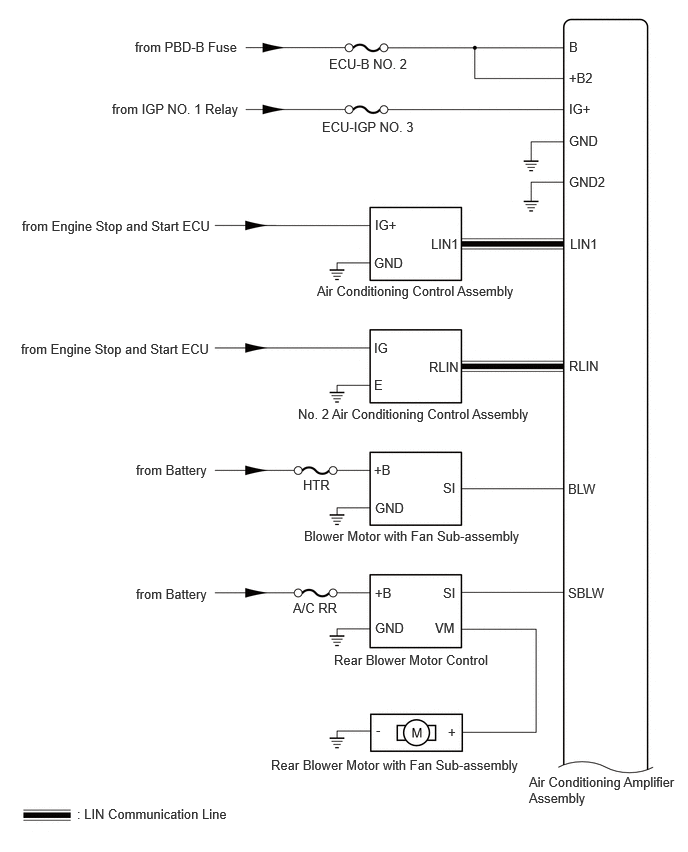

w/ Stop and Start System

GTY1180156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

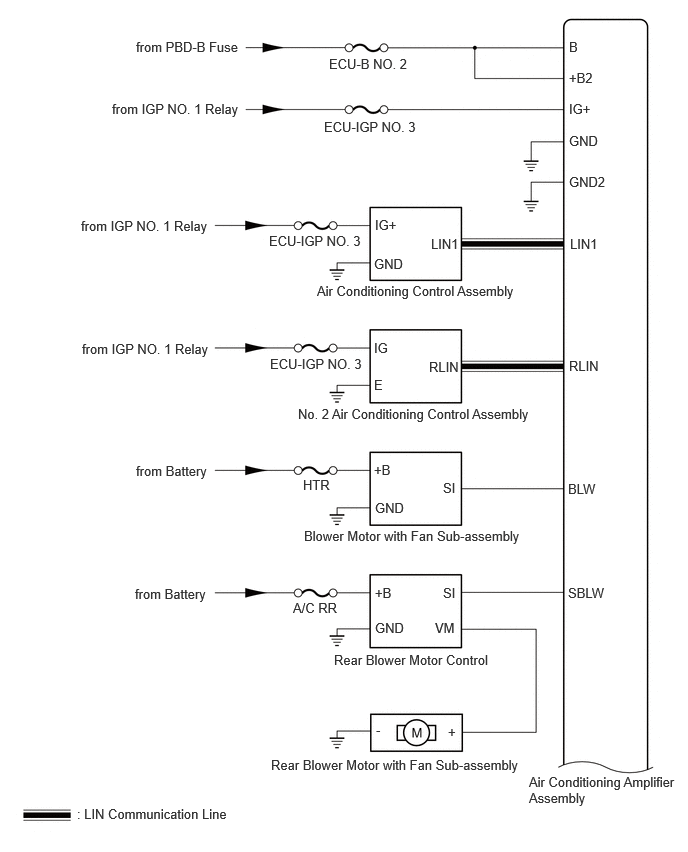

w/o Stop and Start System

GTY1179536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

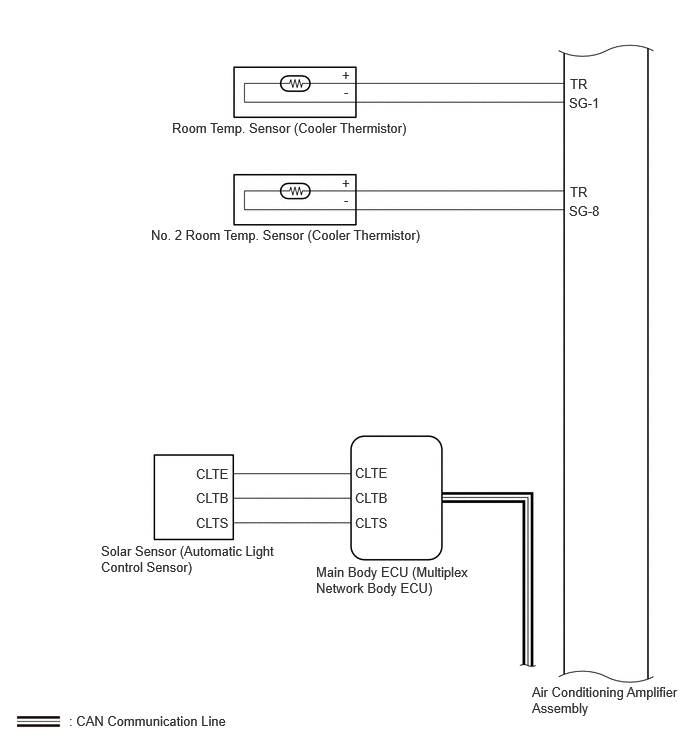

GTY1180080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

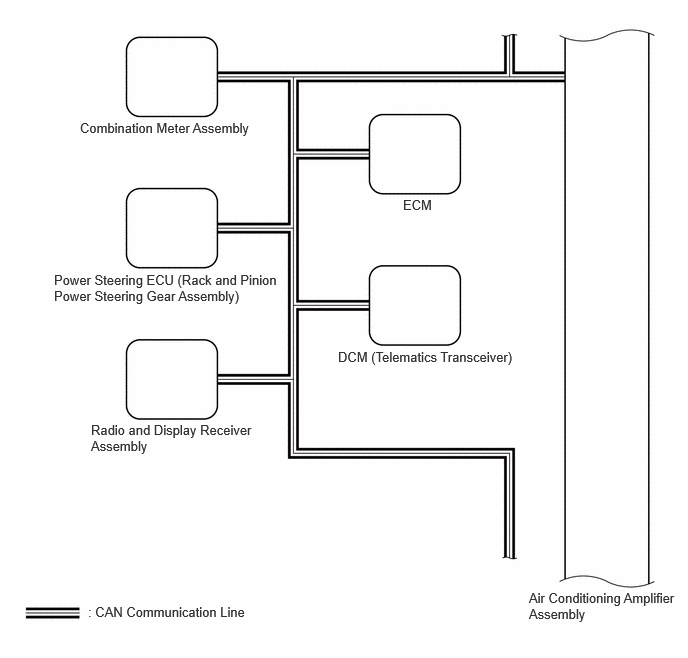

GTY1179151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Stop and Start System:

GTY1180110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1179154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1120511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY943566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
