Heating / Air Conditioning System (Except HV, W/ Auto A/C) - Diagnostic Codes (1 Of 2)
>>
AIR CONDITIONING SYSTEM (for Gasoline Model with Automatic Air Conditioning System)
>>
DTC B1417: Evaporator Temperature Circuit [12/2019 - 11/2023]
>>
Wiring Diagram

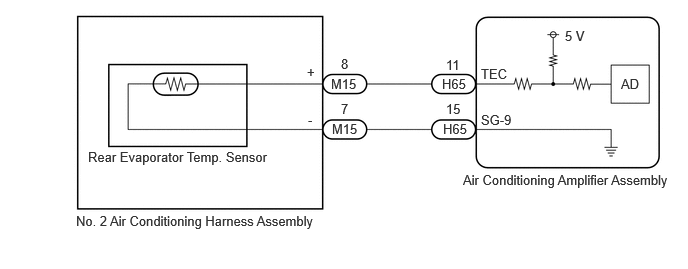

DTC B1417: Evaporator Temperature Circuit [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
