Operation not Accepted Even If Air Conditioning Switch is Operated [12/2019 - 10/2022]: Wiring Diagram

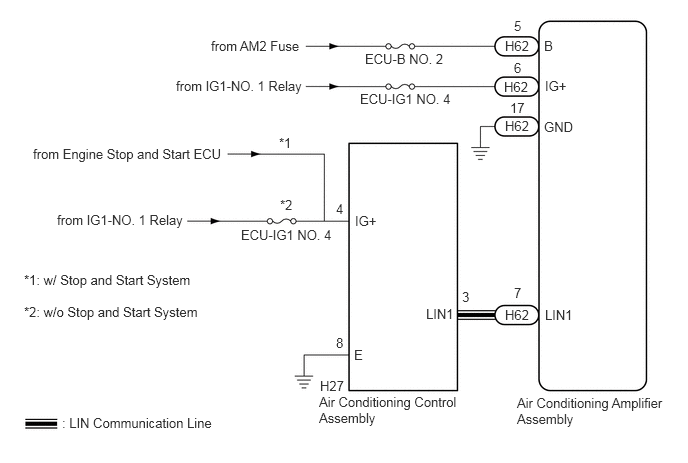

w/ Toyota Multi Operation Touch System:

GTY893435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Toyota Multi Operation Touch System

GTY893434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
