AIR CONDITIONING SYSTEM (for Gasoline Model with Automatic Air Conditioning System)
>>
Rear Panel Switch Operation not Accepted [12/2019 - 11/2023]
>>

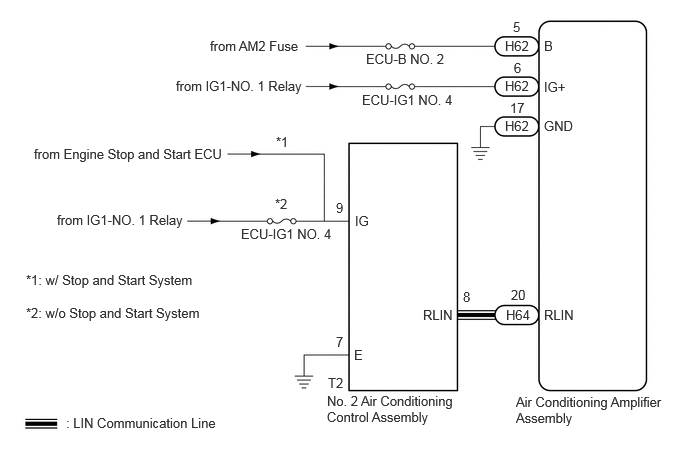

Wiring Diagram
Rear Panel Switch Operation not Accepted [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
