Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heating / Air Conditioning System (Except HV, W/ Auto A/C) - Circuit Tests & Symptom Tests >> AIR CONDITIONING SYSTEM (for Gasoline Model with Automatic Air Conditioning System) >> Air Vent Temperature does not Change and Right Vent is Different from Left and Vice Versa (Same Left/Right Temperature Setting) [11/2023 - ] >> Wiring Diagram

Air Vent Temperature does not Change and Right Vent is Different from Left and Vice Versa (Same Left/Right Temperature Setting) [11/2023 - ]: Wiring Diagram

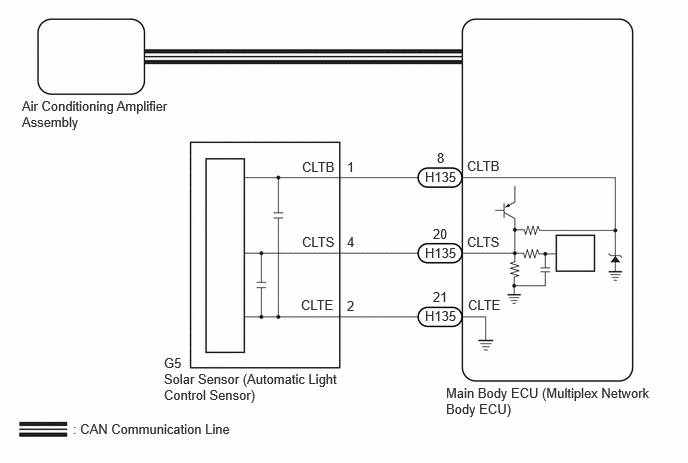

GTY1179418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
