System Diagram [12/2019 - 11/2023]

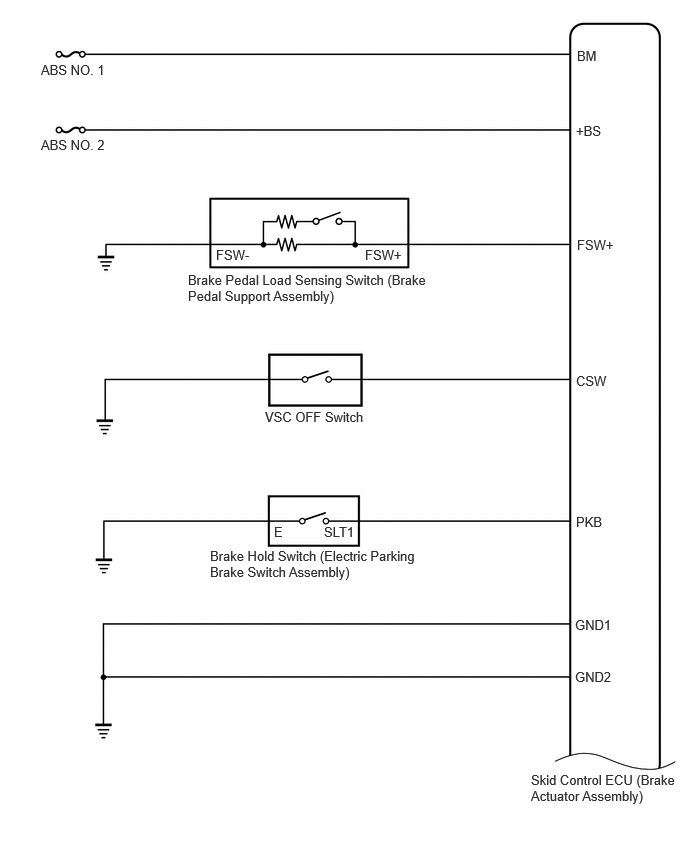

Fig 1: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (1 Of 6)
GTY1119416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

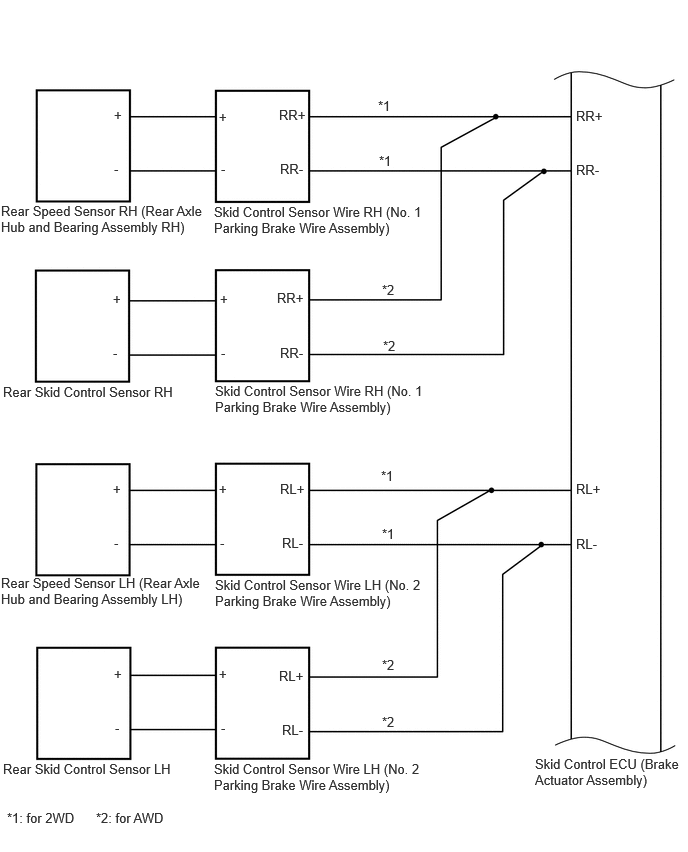

Fig 2: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (2 Of 6)
GTY925099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

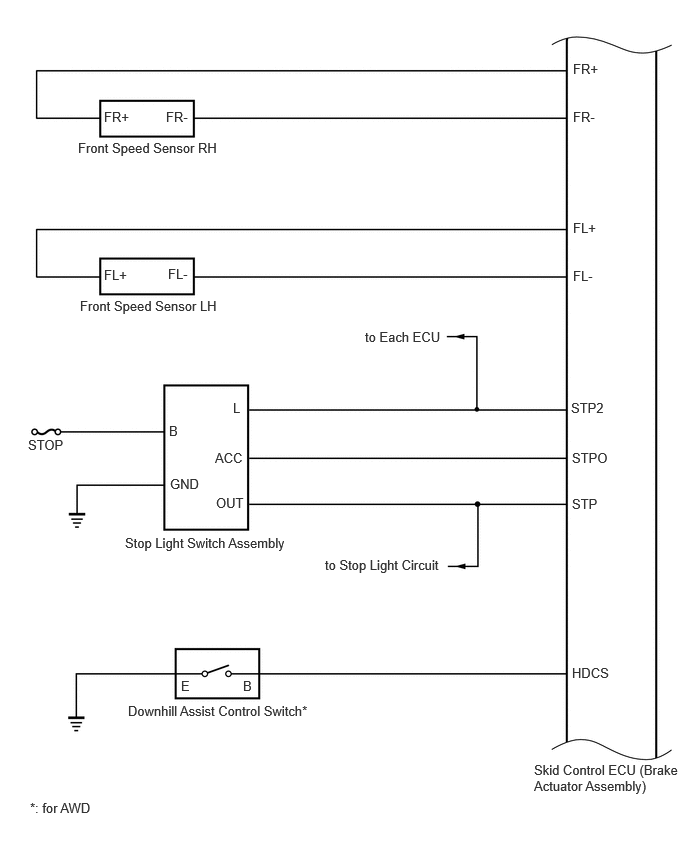

Fig 3: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (3 Of 6)
GTY918311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

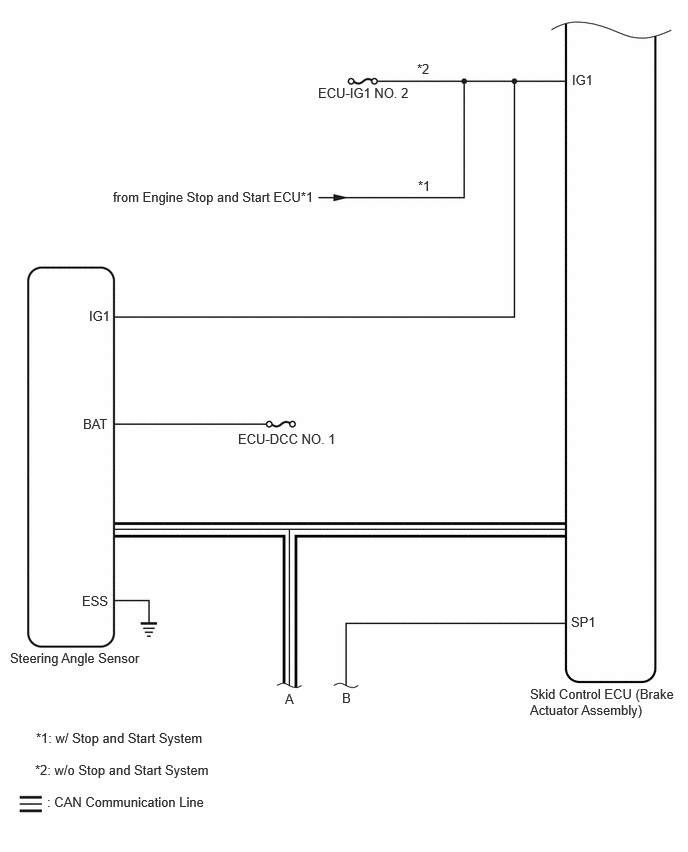

Fig 4: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (4 Of 6)
GTY1116697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

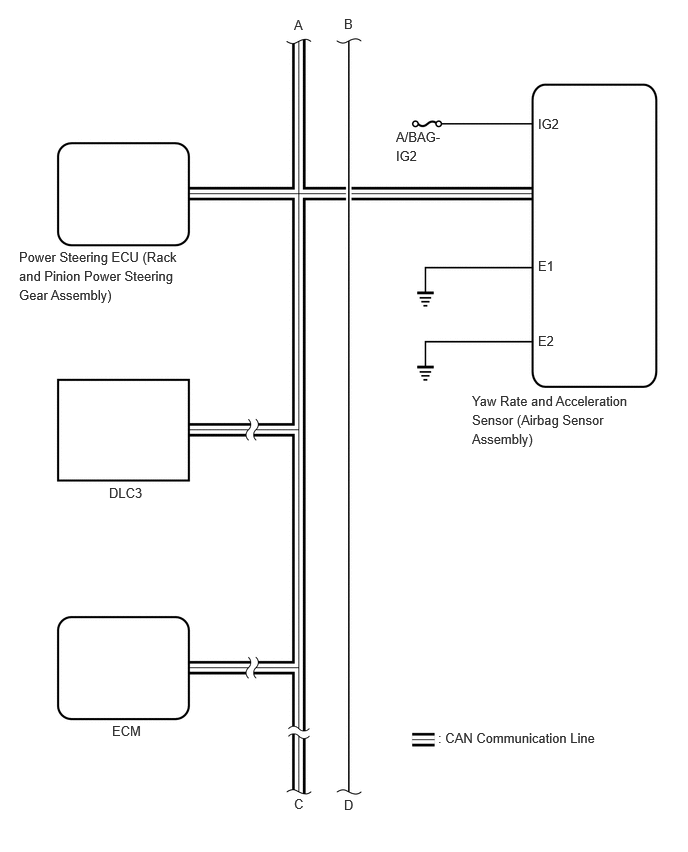

Fig 5: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (5 Of 6)
GTY905985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

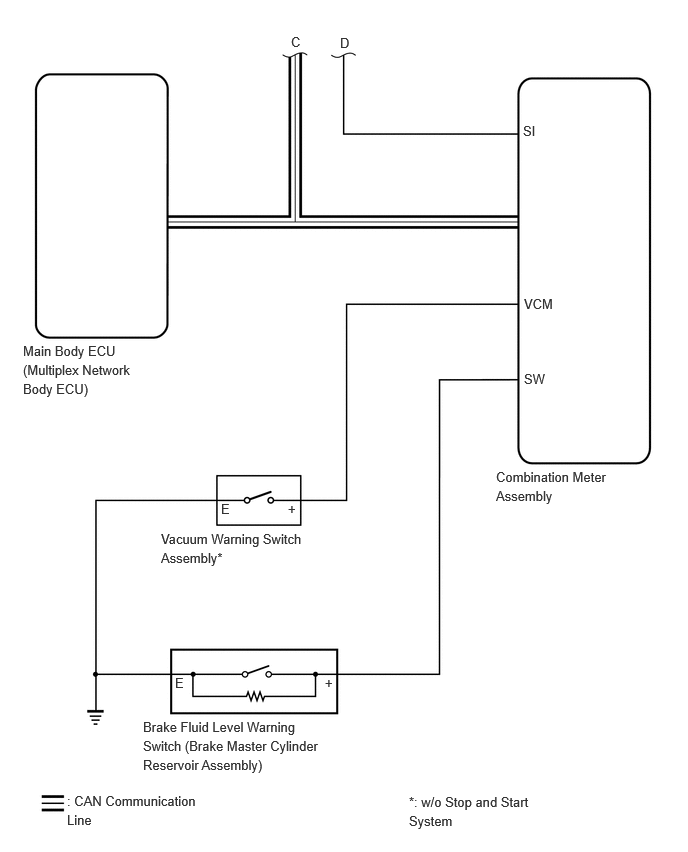

Fig 6: Electronically Controlled Brake System (For Gasoline Model) [12/2019 - 11/2023] (6 Of 6)
GTY922020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
