System Diagram [11/2023 - ]

Fig 1: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (1 Of 6)
GTY1119416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (2 Of 6)
GTY925099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (3 Of 6)
GTY918311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

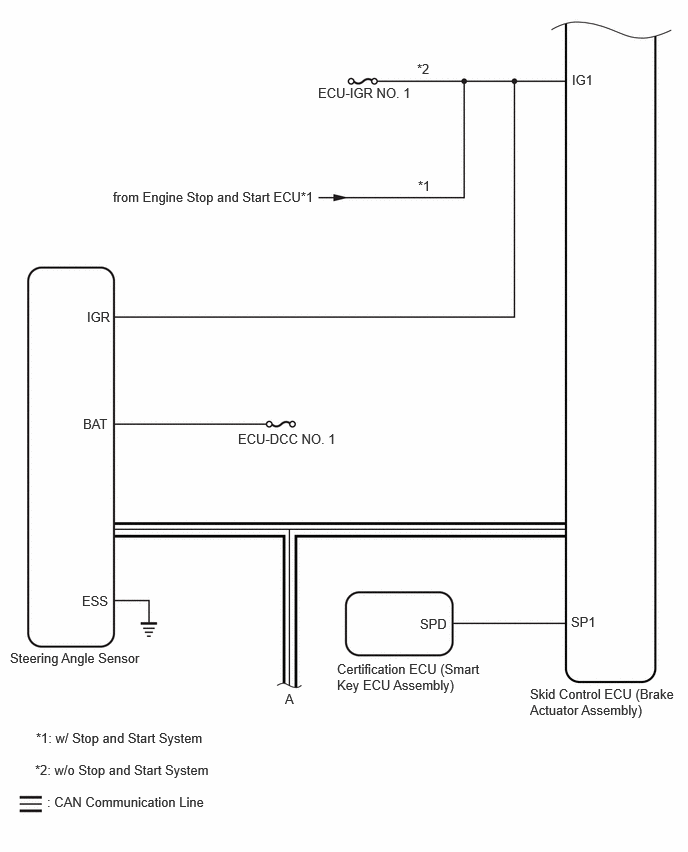

Fig 4: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (4 Of 6)
GTY1179964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

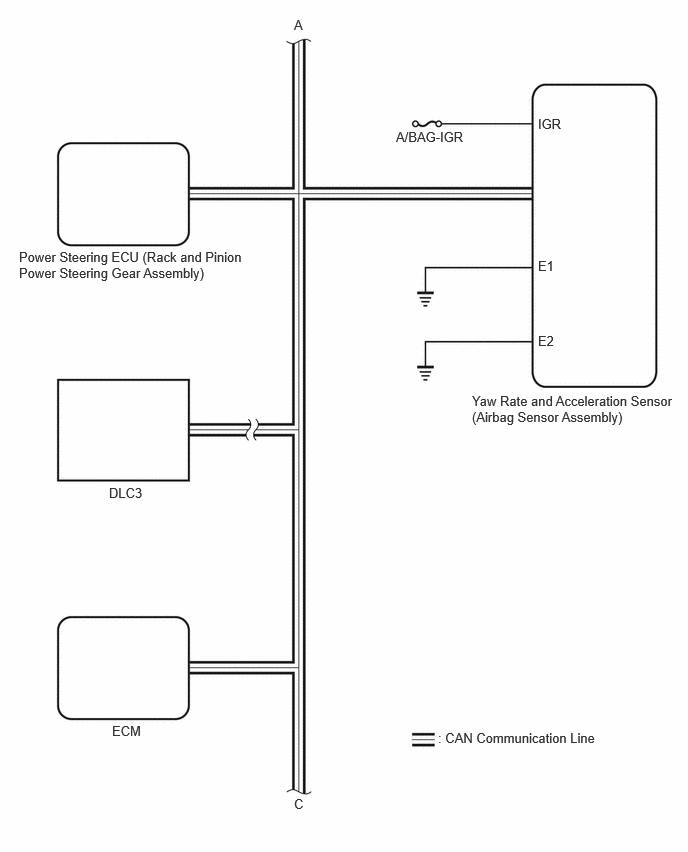

Fig 5: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (5 Of 6)
GTY1180066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

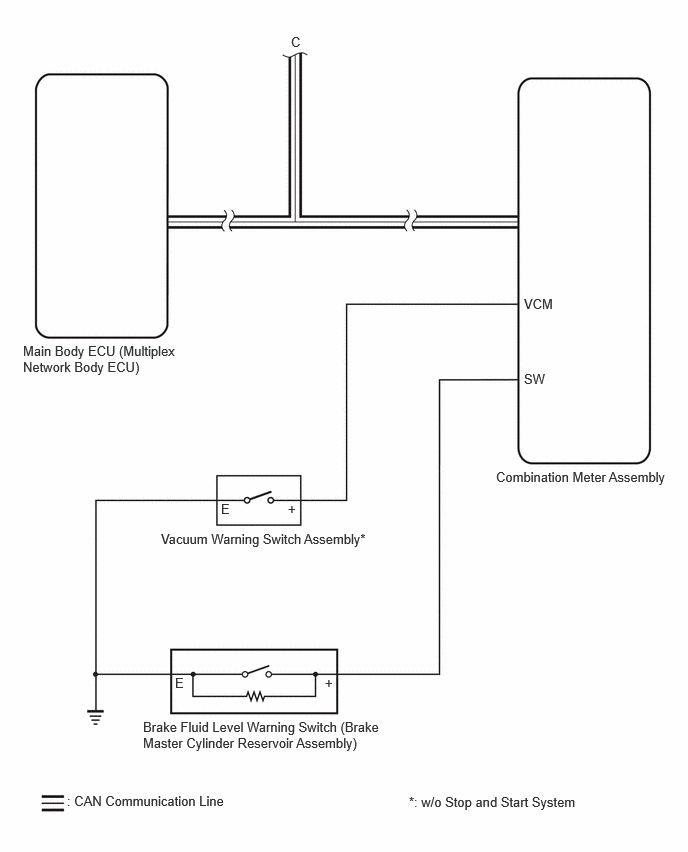

Fig 6: Electronically Controlled Brake System (For Gasoline Model) [11/2023 - ] (6 Of 6)
GTY1179474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
