Parts Location [12/2019 - 10/2022]: Illustration

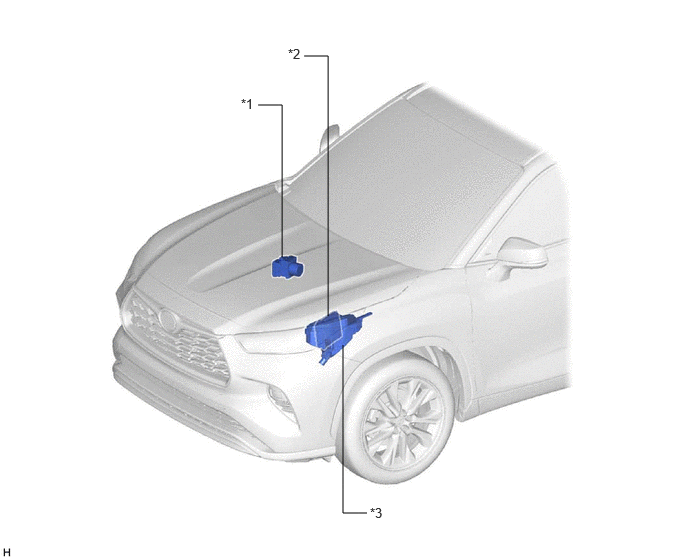

| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE |
- | - |

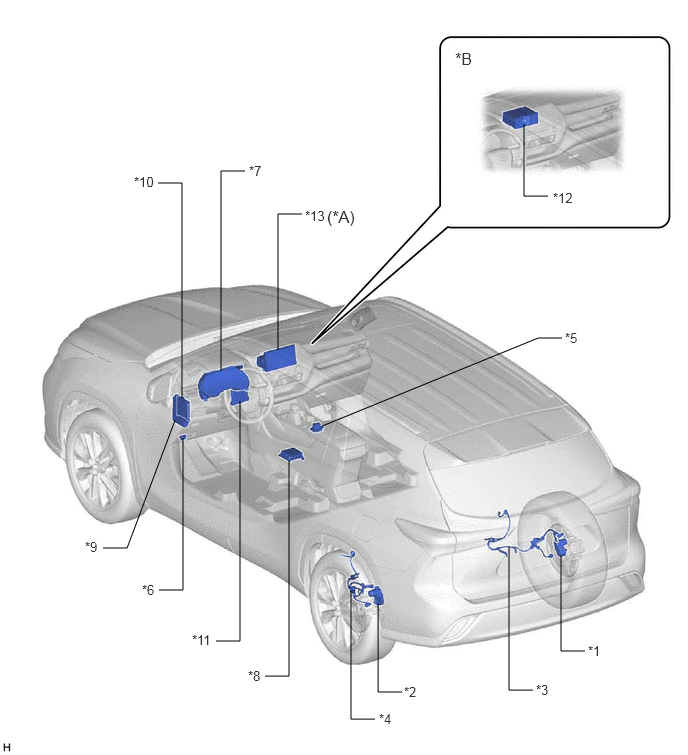

| *A | For 8 Inch Type | *B | For 12.3 Inch Type |
| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *6 | DLC3 |
| *7 | COMBINATION METER ASSEMBLY | *8 | DECELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE (w/o Stop and Start System) - ECU-B NO. 2 FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *12 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *13 | RADIO RECEIVER ASSEMBLY | - | - |
