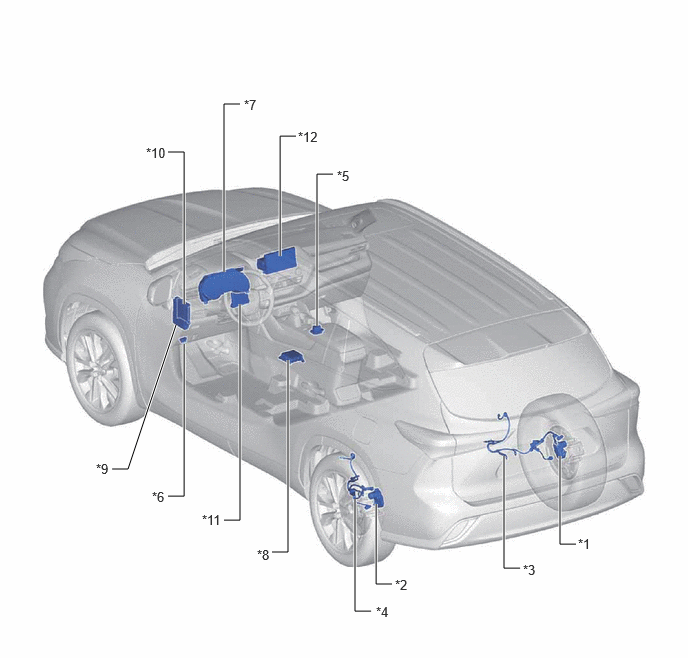

Parts Location [11/2023 - ]: Illustration
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE |
- | - |
| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *6 | DLC3 |
| *7 | COMBINATION METER ASSEMBLY | *8 | DECELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) |
| *9 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 1 (w/o Stop and Start System) - ECU-B NO. 2 FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *12 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
