System Diagram [12/2019 - 10/2022]

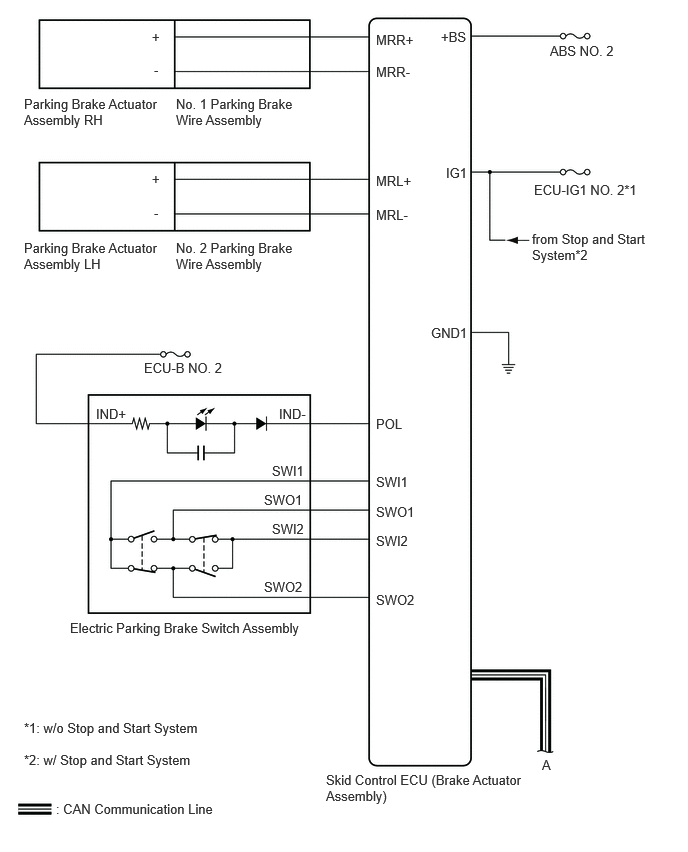

Fig 1: Electric Parking Brake System (For Gasoline Model) Diagram [12/2019 - 10/2022] (1 Of 2)
GTY934375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

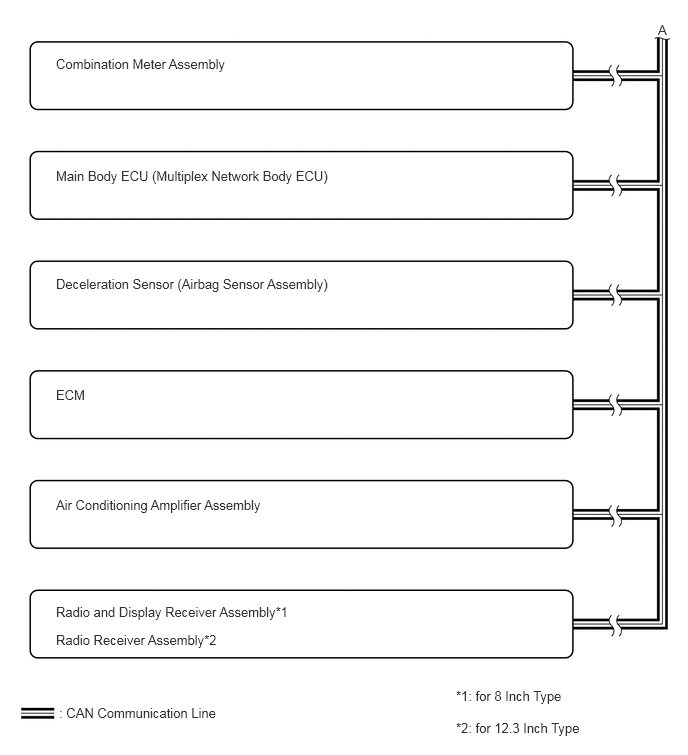

Fig 2: Electric Parking Brake System (For Gasoline Model) Diagram [12/2019 - 10/2022] (2 Of 2)
GTY931848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
