System Diagram [11/2023 - ]

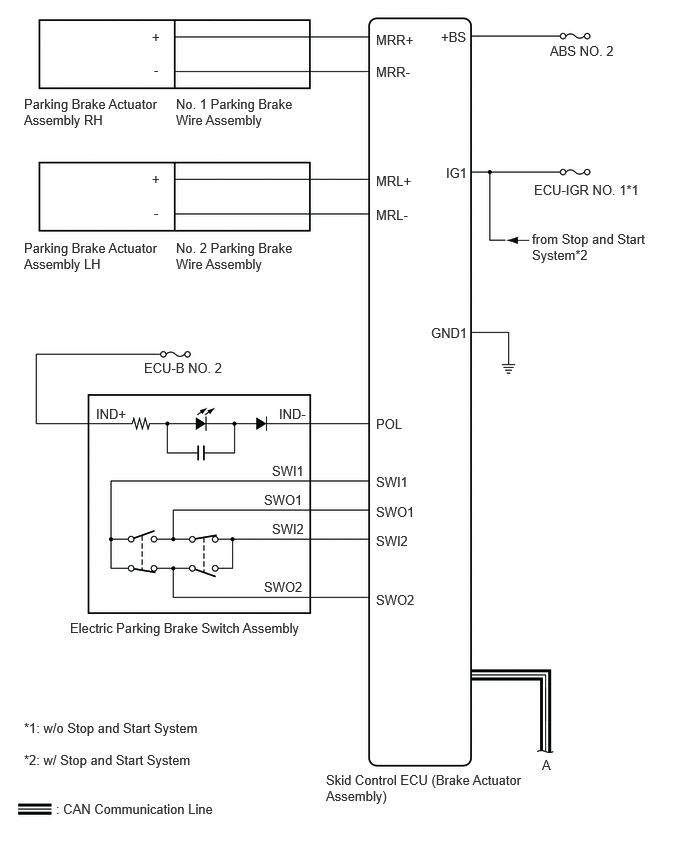

Fig 1: Electric Parking Brake System (For Gasoline Model) Diagram [11/2023 - ] (1 Of 2)
GTY1178249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Electric Parking Brake System (For Gasoline Model) Diagram [11/2023 - ] (2 Of 2)
GTY1110930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
