DTC C060B-12: Left Electric Parking Brake Actuator Control Circuit Short to Battery [12/2019 - ]: Procedure

  1. CHECK FOR SHORT TO +B
    1. Turn the ignition switch off.
    2. Make sure the No. 2 parking brake wire assembly is securely installed.
    3. Disconnect the u2 parking brake actuator assembly LH connector.
    4. Measure the voltage according to the value(s) in the table below.
      GTY864185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of No. 2 Parking Brake Wire Assembly
      (to Parking Brake Actuator Assembly LH)

      Standard Voltage

      Tester Connection Condition Specified Condition
      u2-2 (+) - u2-1 (-) Electric parking brake not operating Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [12/2019 - ]

    Result:

    NG

    See step  2

  2. CHECK FOR SHORT TO +B
    1. Disconnect the uM2 No. 2 parking brake wire assembly connector.
    2. Measure the voltage according to the value(s) in the table below.
      GTY914277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Parking Brake Wire Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      uM2-1 - uM2-2 Electric parking brake not operating Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY

    Result:

    NG

    See step  3

  3. CHECK FOR SHORT TO +B
    1. Disconnect the uM2 No. 2 parking brake wire assembly connector.
    2. Disconnect the A39 skid control ECU (brake actuator assembly) connector.
    3. Measure the voltage according to the value(s) in the table below.

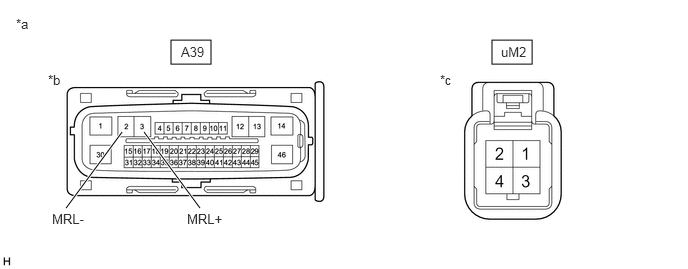

      GTY918833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector *b (to Skid Control ECU (Brake Actuator Assembly))
      *c (to No. 2 Parking Brake Wire Assembly) - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      uM2-1 or A39-3 (MRL+) - Body ground Always Below 1 V
      uM2-2 or A39-2 (MRL-) - Body ground Always Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]  , or refer to  REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
