DTC C13B5-16: Electric Parking Brake Actuator Supply Voltage Circuit Voltage Below Threshold [12/2019 - ]: Procedure

  1. CHECK HARNESS AND CONNECTOR (+BS TERMINAL VOLTAGE)
    1. Disconnect the A39 skid control ECU (brake actuator assembly) connector.
    2. Measure the voltage according to the value(s) in the table below.

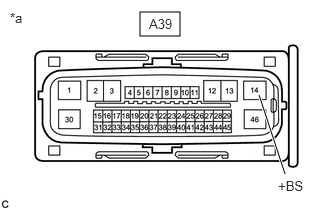

      GTY907396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Skid Control ECU (Brake Actuator Assembly))

      Standard Voltage

      Tester Connection Condition Specified Condition
      A39-14 (+BS) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]  , or refer to  REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
