Parts Location [11/2023 - ]: Illustration

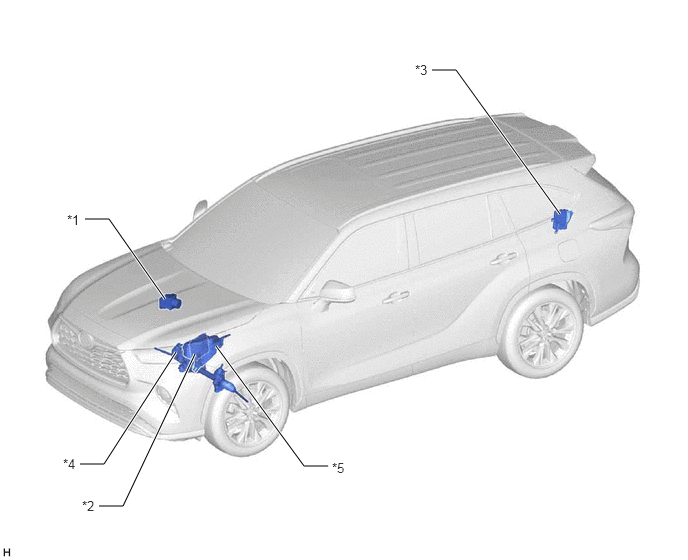

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*2	ECM
*3	4WD ECU ASSEMBLY	*4	RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - 4WD FUSE	-	-

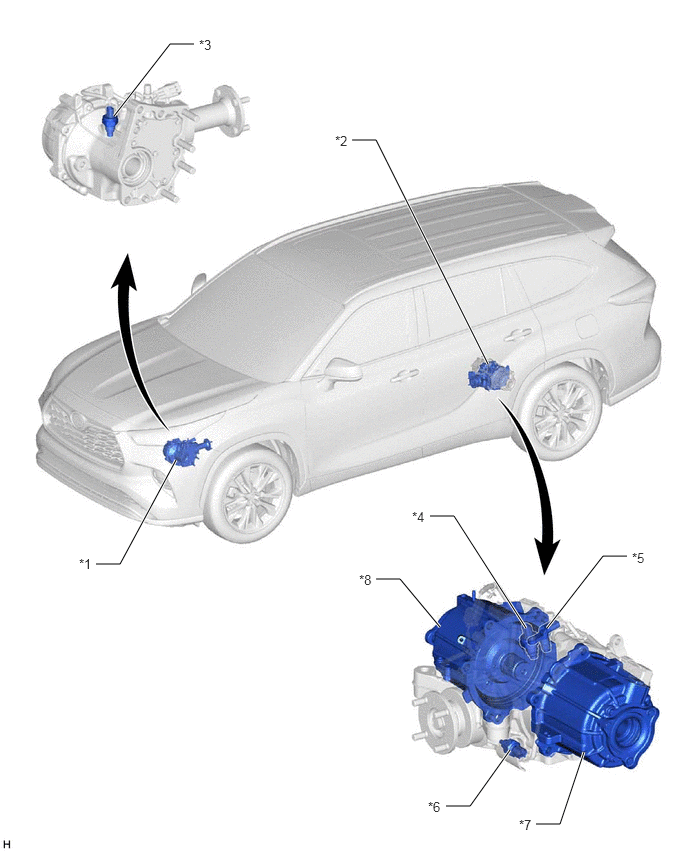

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSFER ASSEMBLY - FRONT 4WD LINEAR SOLENOID	*2	REAR DIFFERENTIAL CARRIER ASSEMBLY - REAR 4WD LINEAR SOLENOID
*3	NO. 1 4 WHEEL DRIVE POSITION SWITCH	*4	NO. 2 4 WHEEL DRIVE POSITION SWITCH
*5	TRANSMISSION REVOLUTION SENSOR	*6	TEMPERATURE SENSOR
*7	ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY LH - REAR 4WD LINEAR SOLENOID LH	*8	ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY RH - REAR 4WD LINEAR SOLENOID RH

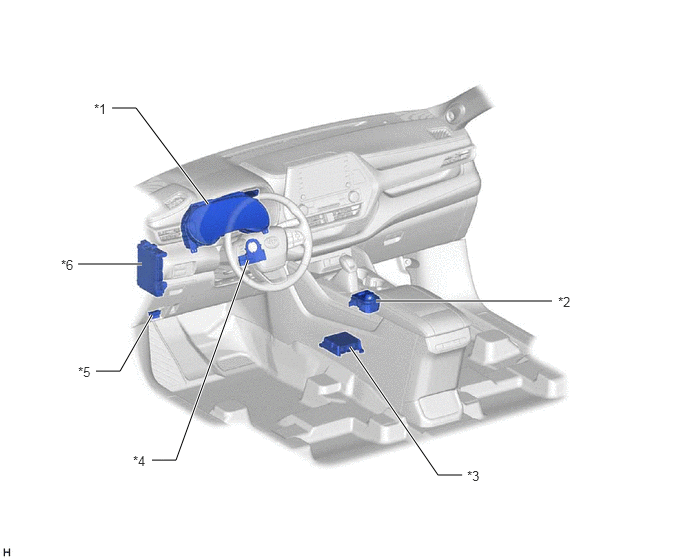

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY - AWD WARNING (MULTI-INFORMATION DISPLAY)	*2	MULTI-TERRAIN SELECT SWITCH (NO. 1 PATTERN SELECT SWITCH ASSEMBLY)
*3	YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY)	*4	STEERING SENSOR
*5	DLC3	*6	POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 1 FUSE
