System Diagram [12/2019 - 11/2023]

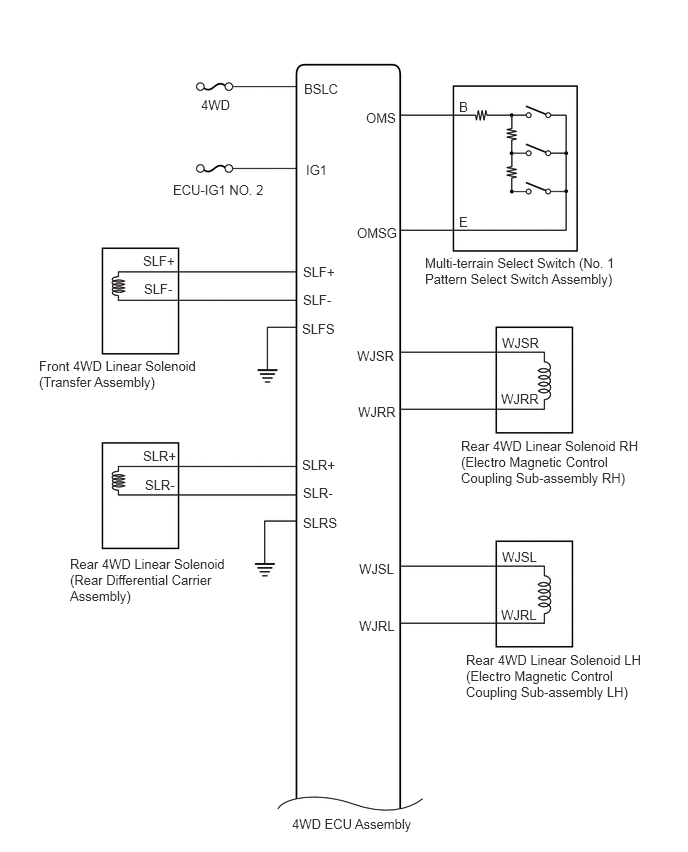

Fig 1: Dynamic Torque Vectoring AWD System Diagram [12/2019 - 11/2023] (1 Of 3)
GTY875493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

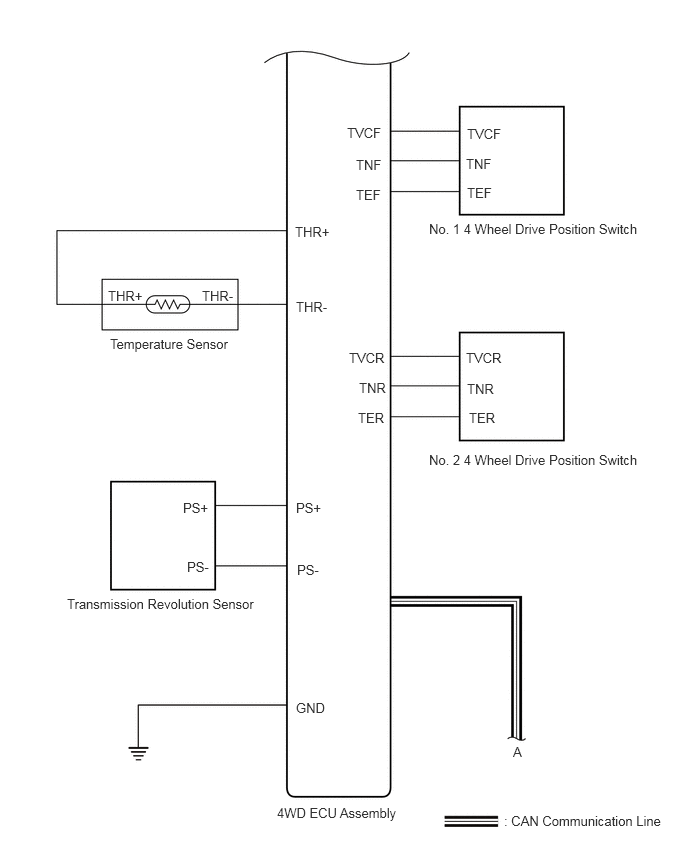

Fig 2: Dynamic Torque Vectoring AWD System Diagram [12/2019 - 11/2023] (2 Of 3)
GTY903413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

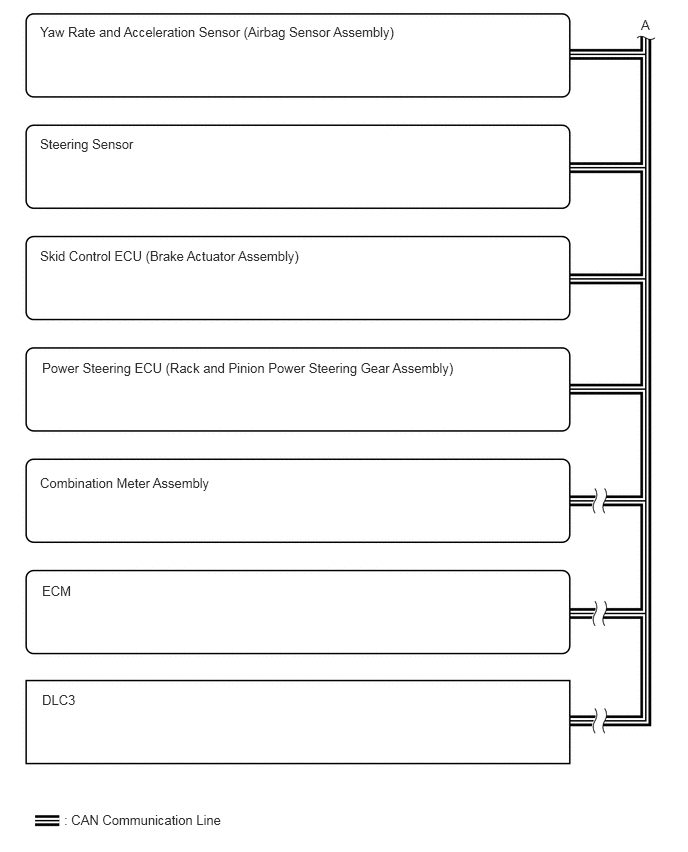

Fig 3: Dynamic Torque Vectoring AWD System Diagram [12/2019 - 11/2023] (3 Of 3)
GTY881755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
