System Diagram [11/2023 - ]

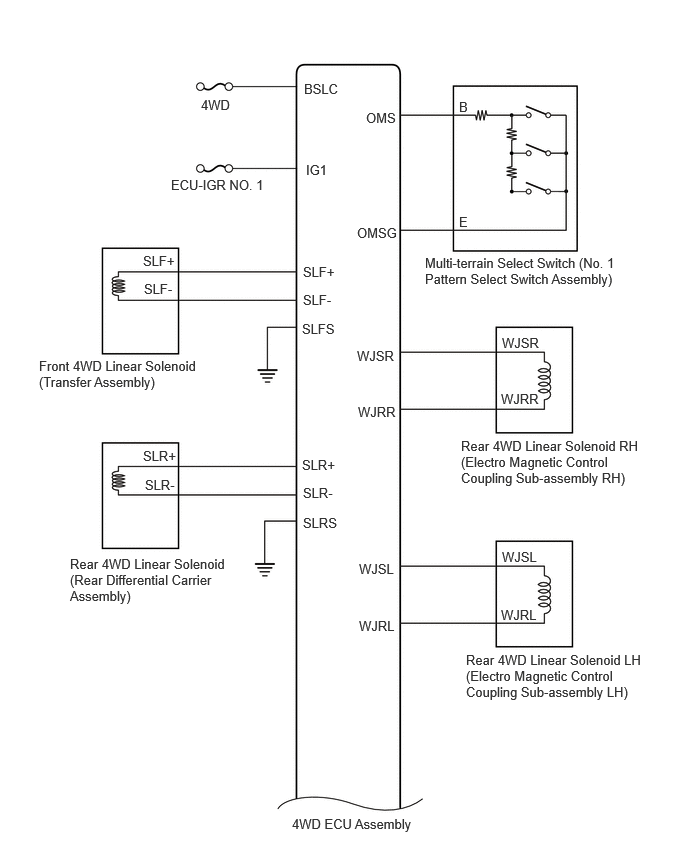

Fig 1: Dynamic Torque Vectoring AWD System Diagram [11/2023 - ] (1 Of 3)
GTY1177766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Dynamic Torque Vectoring AWD System Diagram [11/2023 - ] (2 Of 3)
GTY903413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dynamic Torque Vectoring AWD System Diagram [11/2023 - ] (3 Of 3)
GTY881755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
