Dynamic Torque Vectoring AWD System - Diagnostic Codes, Symptom Tests & Circuit Tests
>>
Dynamic Torque Vectoring AWD System
>>
AWD Warning Remains ON [11/2023 - 11/2024]
>>
Wiring Diagram
AWD Warning Remains ON [11/2023 - 11/2024]: Wiring Diagram

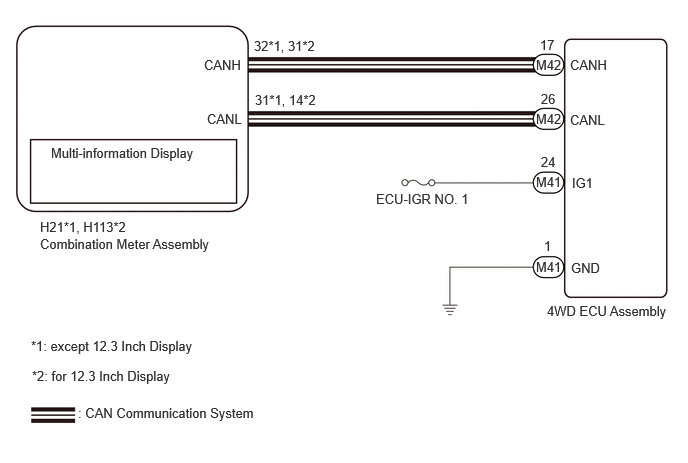

Fig 1: AWD Warning Remains ON [11/2023 - 11/2024]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
