AWD Control Switch Circuit [10/2022 - 11/2024]: Wiring Diagram

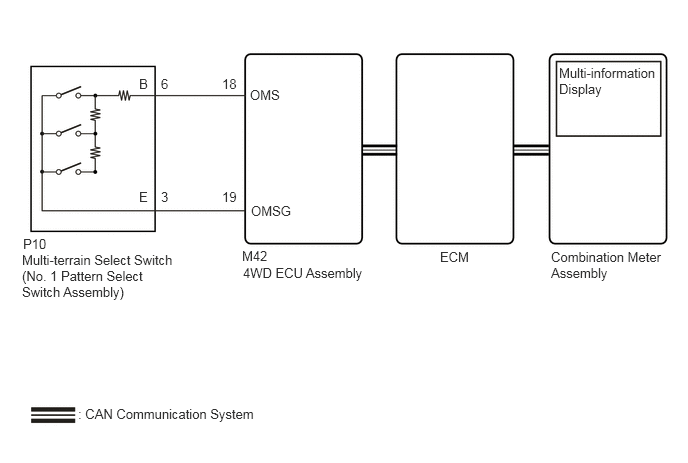

Fig 1: AWD Control Switch Circuit [10/2022 - 11/2024]
GTY872259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
