DTC C13F7-00: 4WD/AWD Front Disconnect System Performance [12/2019 - ]: Procedure

1. Read the DTCs using the GTS.

   Chassis > Four Wheel Drive > Trouble Codes

   Result

   Result	Proceed to
   DTC C13ED-1C is not output.	A
   DTC C13ED-1C is output.	B

Result:

B

GO TO DTC CHART (DTC C13ED-1C). Refer to  DTC C13ED-1C: 4WD/AWD Ring Gear Revolution Sensor Circuit Voltage Out of Range [12/2019 - ]

Result:

A

See step  2

1. Check the transmission revolution sensor installation.

   Refer to REASSEMBLY [12/2019 - ]

   OK

   The transmission revolution sensor is not deformed or tilted, its installation bolts are tightened to the specified torque, and there is no foreign matter between the transmission revolution sensor and differential carrier assembly.

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY INSTALL OR REPLACE TRANSMISSION REVOLUTION SENSOR. Refer to  REASSEMBLY [12/2019 - ]

Result:

OK

See step  3

1. Remove the transmission revolution sensor.

   Refer to DISASSEMBLY [12/2019 - ]

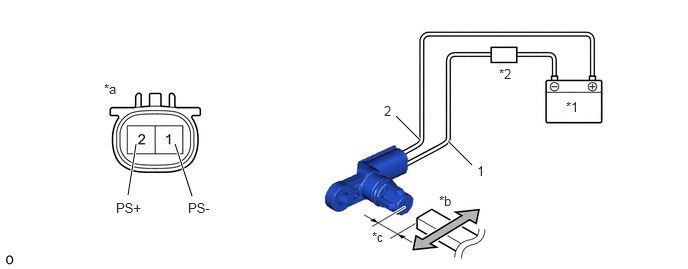

2. Connect the battery to the transmission revolution sensor as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Battery	*2	Ammeter
   *a	Component without harness connected (Transmission Revolution Sensor)	*b	Magnet
   *c	5 mm (0.197 in.)	-	-

3. Wave a magnet left and right 5 mm (0.197 in.) or less from the tip of the transmission revolution sensor to output a high/low signal while measuring the current.
   NOTE:

   Make sure to wave the magnet during the inspection. The current will not change unless the magnet is moved as shown in the illustration.

4. Measure the current according to the value(s) in the table below.

   Standard Current

   Tester Connection	Condition	Specified Condition
   1 (PS-) - 2 (PS+)	Low signal (Move magnet closer)	6 mA
   1 (PS-) - 2 (PS+)	High signal (Move magnet away)	14 mA

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE TRANSFER ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]  , or refer to  REMOVAL [11/2023 - ]

Result:

NG

REPLACE TRANSMISSION REVOLUTION SENSOR. Refer to  DISASSEMBLY [12/2019 - ]
