Dynamic Torque Control AWD System - Diagnostic Codes, Symptom Tests & Circuit Tests
>>
Dynamic Torque Control AWD System
>>
AWD Control Switch Circuit [12/2019 - 10/2022]
>>
Wiring Diagram
AWD Control Switch Circuit [12/2019 - 10/2022]: Wiring Diagram

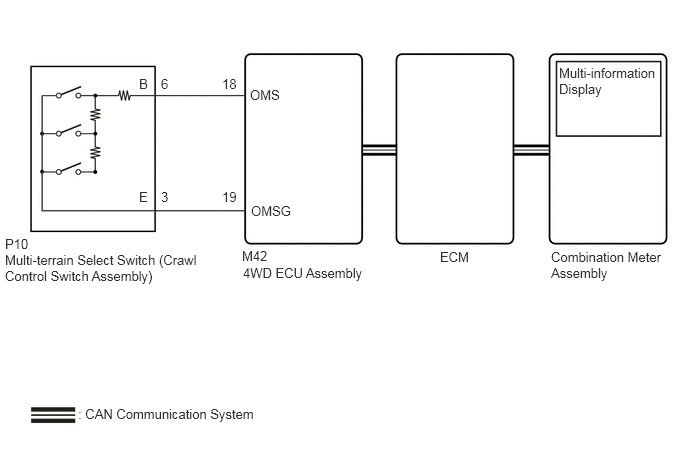

Fig 1: AWD Control Switch Circuit [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
