Parts Location [12/2019 - 10/2022]: Illustration

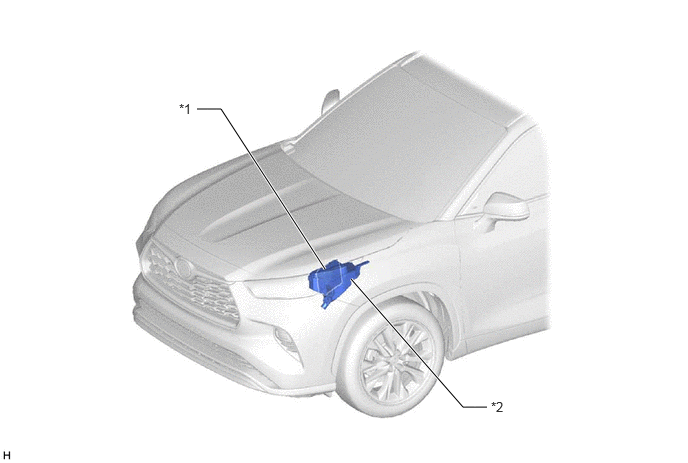

| *1 | ECM | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ST RELAY - EFI NO. 1 FUSE - J/B-B FUSE - ETCS FUSE |

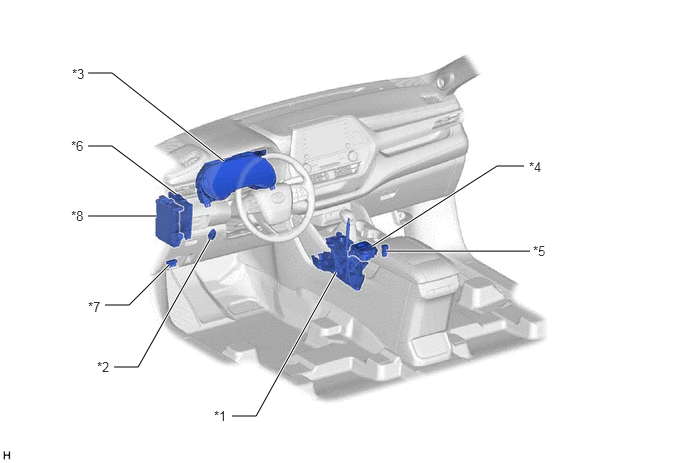

| *1 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) |
| *5 | SNOW MODE SWITCH (PATTERN SELECT SWITCH ASSEMBLY) |
*6 | ENGINE STOP AND START ECU |
| *7 | DLC3 | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-ACC FUSE - BKUP LP FUSE - ECU-IG1 NO. 3 FUSE |

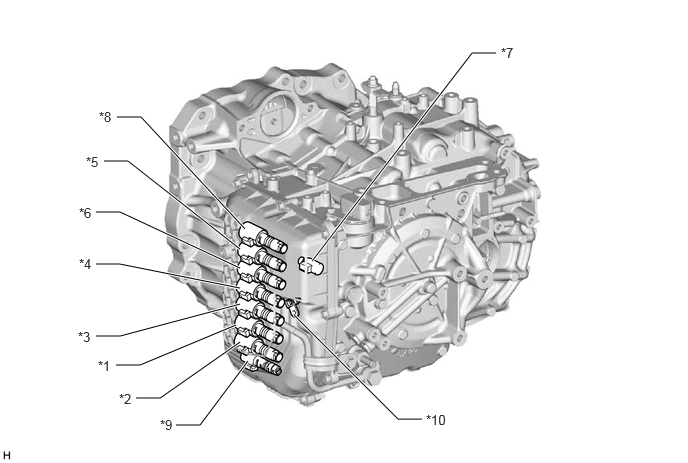

| *1 | SOLENOID (SL1) VALVE | *2 | SOLENOID (SL2) VALVE |
| *3 | SOLENOID (SL3) VALVE | *4 | SOLENOID (SL4) VALVE |
| *5 | SOLENOID (SL5) VALVE | *6 | SOLENOID (SL6) VALVE |
| *7 | SOLENOID (SL) VALVE | *8 | SOLENOID (SLU) VALVE |
| *9 | SOLENOID (SLT) VALVE | *10 | TRANSMISSION WIRE - ATF TEMPERATURE SENSOR |
