Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission System (UA80F) - Diagnostic Codes (2 Of 2) & Symptom Tests >> Automatic Transaxle System >> Transmission Control Switch Circuit [12/2019 - 10/2022] >> Wiring Diagram

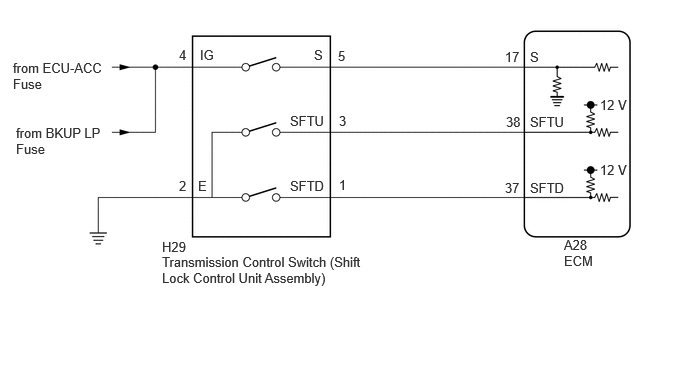

Transmission Control Switch Circuit [12/2019 - 10/2022]: Wiring Diagram

GTY866564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
