Automatic Transmission System (UA80F) - Diagnostic Codes (1 Of 2)
>>
Automatic Transaxle System
>>
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]
>>

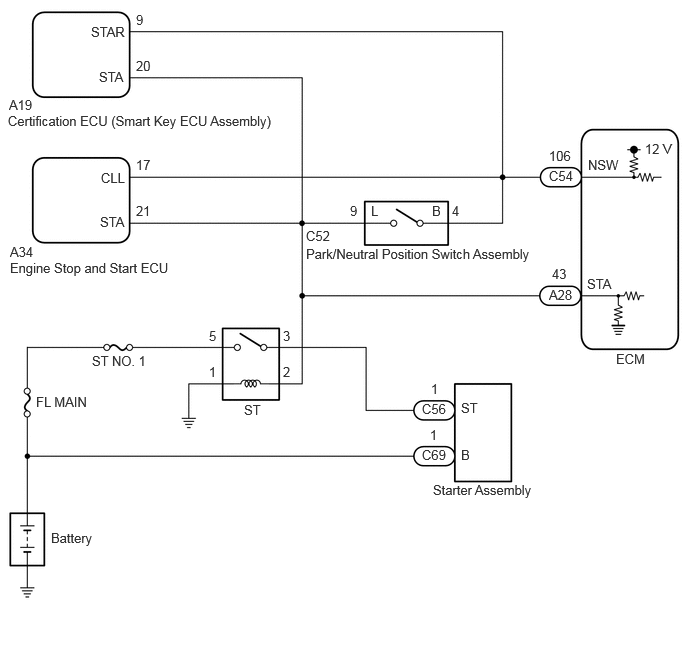

Wiring Diagram
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]: Wiring Diagram
