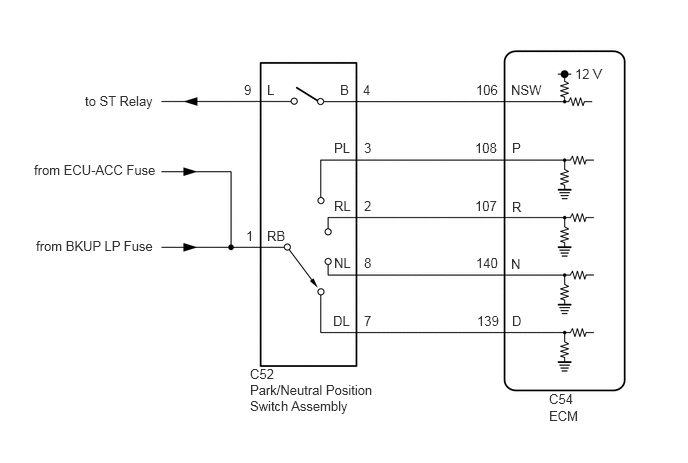

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [12/2019 - 10/2022]: Wiring Diagram

GTY883363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
