DTC P0740-11: Torque Converter Clutch Circuit Short to Ground [12/2019 - 10/2022]: Procedure

1. Disconnect the C51 transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

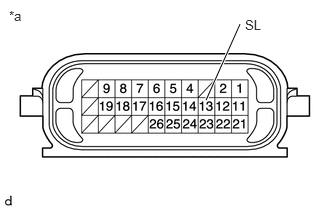

   *a	Component without harness connected (Transmission Wire)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   13 (SL) - Body ground	20°C (68°F)	11 to 15 Ω

3. Connect the C51 transmission wire connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  2

1. Disconnect the C54 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C54-62 (SL) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

Result:

OK

See step  3

1. Replace the ECM.

   Refer to COMPONENTS [12/2019 - 10/2022]

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM REGISTRATION. Refer to  REGISTRATION [12/2019 - 10/2022]

1. Remove the solenoid (SL) valve.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

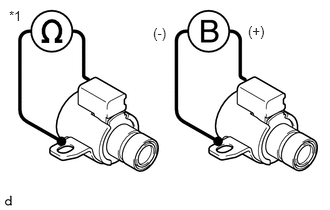

   *1	Solenoid (SL) Valve

   Refer to DISASSEMBLY [12/2019 - 10/2022]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Solenoid (SL) valve connector terminal - Solenoid (SL) valve body	20°C (68°F)	11 to 15 Ω

3. Connect a positive (+) lead from the battery to the terminal of the solenoid valve connector, and a negative (-) lead to the solenoid body. Check that the valve moves and makes an operating sound.

   OK

   Valve moves and makes an operating sound.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE TRANSMISSION WIRE. Refer to  COMPONENTS [12/2019 - 10/2022]

Result:

NG

REPLACE SOLENOID (SL) VALVE. Refer to  COMPONENTS [12/2019 - 10/2022]
