Section 131 (Automatic Transmission System (UA80E) - Diagnostic Codes (1 Of 2))
>>
Automatic Transaxle System
>>
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]
>>
Wiring Diagram
DTC P0615-12: Starter Relay Circuit Short to Battery [12/2019 - 10/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

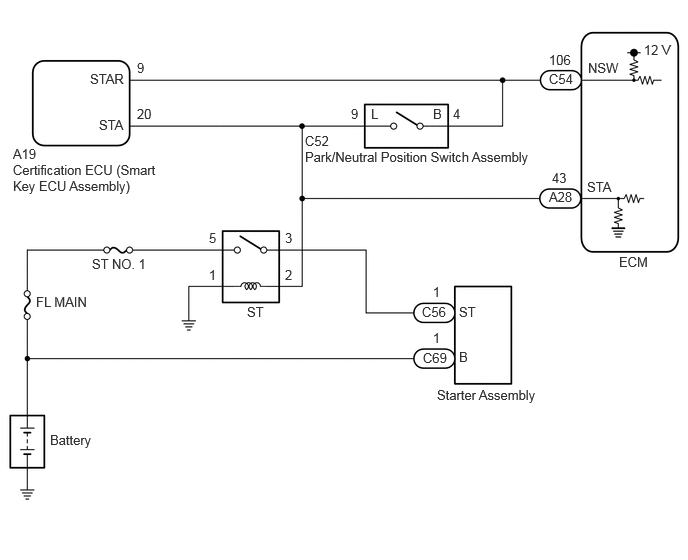

w/o Stop and Start System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Stop and Start System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
