Parts Location [12/2019 - 10/2021]: Illustration

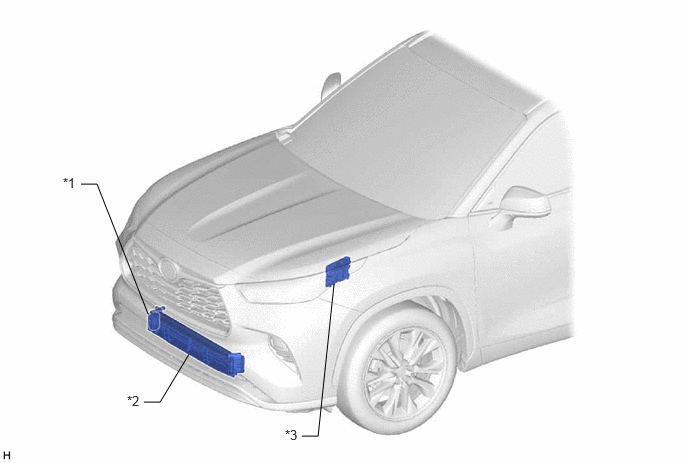

GTY872579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SWING GRILLE ACTUATOR ASSEMBLY *2 RADIATOR SHUTTER SUB-ASSEMBLY
*3 ECM - -

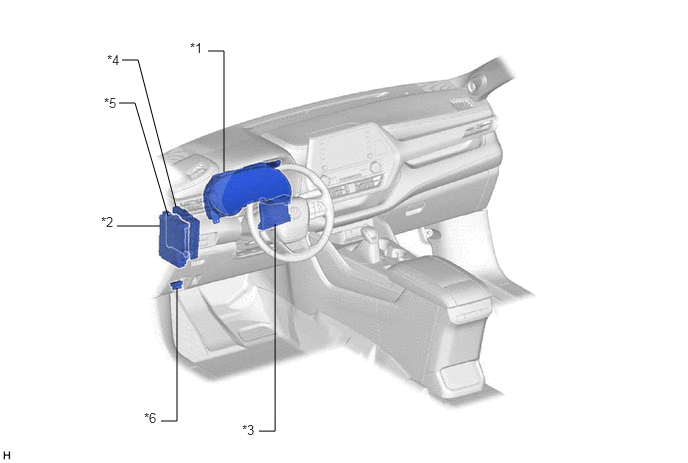

GTY876649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-B NO. 2 FUSE
*3 AIR CONDITIONING AMPLIFIER ASSEMBLY *4 HYBRID VEHICLE CONTROL ECU
*5 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *6 DLC3
