Grille Shutter does not Operate [12/2019 - 10/2021]: Procedure

1. Check that the radiator shutter sub-assembly is free of foreign matter and ice.

   OK

   The radiator shutter sub-assembly is free of foreign matter and ice.

   Result

   Proceed to
   OK
   NG

Result:

NG

FOREIGN OBJECT (REMOVE FOREIGN MATTER AND/OR ICE)

Result:

OK

See step  2

1. Disconnect the A53 radiator shutter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

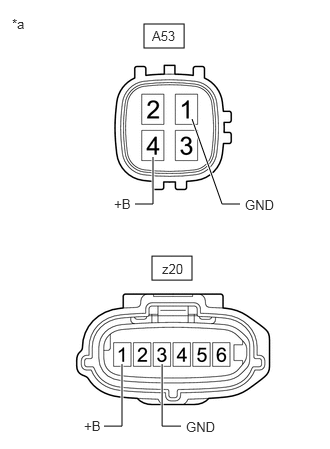

   *a	Front view of wire harness connector (to Radiator Shutter Sub-assembly)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A53-4 (+B) - Body ground	Ignition switch off	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A53-1 (GND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the z20 radiator shutter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Radiator Shutter Sub-assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A53-4 (+B) - z20-1 (+B)	Always	Below 1 Ω
   A53-4 (+B) or z20-1 (+B) - Body ground	Always	10 kΩ or higher
   A53-1 (GND) - z20-3 (GND)	Always	Below 1 Ω
   A53-1 (GND) or z20-3 (GND) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE RADIATOR SHUTTER SUB-ASSEMBLY. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 10/2021]

Result:

OK

See step  4

1. According to the display on the GTS, perform the Active Test to open and close the grille shutter.

   Body Electrical > Grille Shutter > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Shutter Closing Operation Lock Detection	Function to perform a closing operation until motor lock is detected and the motor stops	OFF/Close	-
   Shutter Opening Operation Lock Detection	Function to perform an opening operation until motor lock is detected and the motor stops	OFF/Open	-

   Body Electrical > Grille Shutter > Active Test

   Tester Display
   Shutter Closing Operation Lock Detection

   Body Electrical > Grille Shutter > Active Test

   Tester Display
   Shutter Opening Operation Lock Detection

2. Read the Data List according to the display on the GTS.

   Body Electrical > Grille Shutter > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Shutter Operation Lock Detection Result for Active Test	Result of Active Test Shutter Closing Operation Lock Detection and Shutter Opening Operation Lock Detection	Normal, Open Error or Close Error	Normal: Normal lock detected Open Error: Lock detected in abnormal position while performing Active Test Shutter Opening Operation Lock Detection Close Error: Lock detected in abnormal position while performing Active Test Shutter Closing Operation Lock Detection

   Body Electrical > Grille Shutter > Data List

   Tester Display
   Shutter Operation Lock Detection Result for Active Test

   OK

   "Normal" is displayed on the GTS.

   Result

   Proceed to
   OK
   NG

Result:

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]

Result:

NG

See step  5

1. Remove the radiator shutter sub-assembly.

   Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2021]

2. Remove the swing grille actuator assembly.

   Refer to DISASSEMBLY [12/2019 - 10/2021]

3. Manually open and close the radiator shutter sub-assembly and check that it moves smoothly.

   OK

   The radiator shutter sub-assembly moves smoothly.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE SWING GRILLE ACTUATOR ASSEMBLY. Refer to  DISASSEMBLY [12/2019 - 10/2021]

Result:

NG

REPLACE RADIATOR SHUTTER SUB-ASSEMBLY. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 10/2021]
