Panoramic Moon Roof System does not Operate [12/2019 - 11/2023]: Wiring Diagram

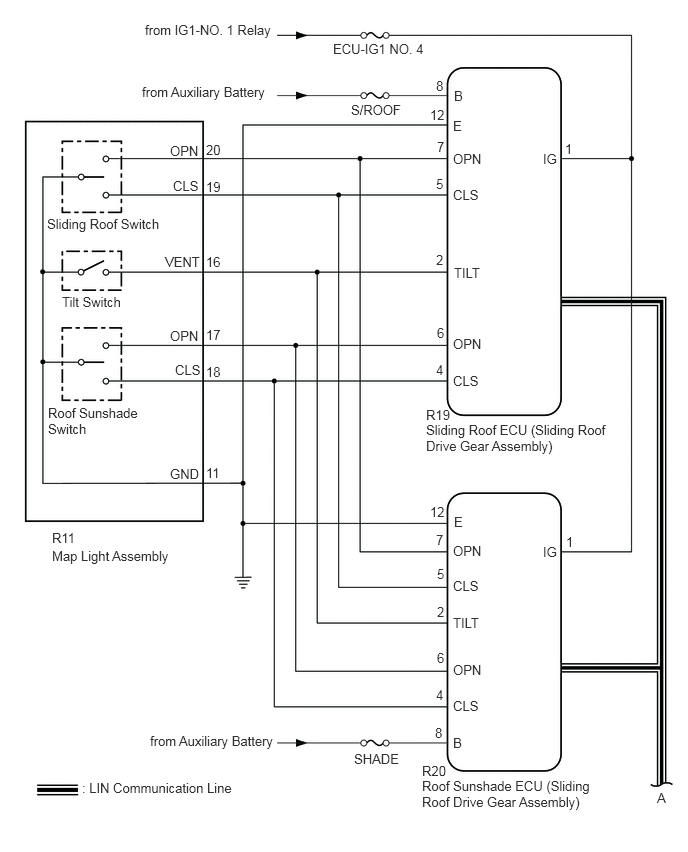

Fig 1: Panoramic Moon Roof System Does Not Operate [12/2019 - 11/2023] (1 Of 2)
GTY864063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Panoramic Moon Roof System Does Not Operate [12/2019 - 11/2023] (2 Of 2)
GTY863899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
