Panoramic Moon Roof System does not Operate [11/2023 - ]: Wiring Diagram

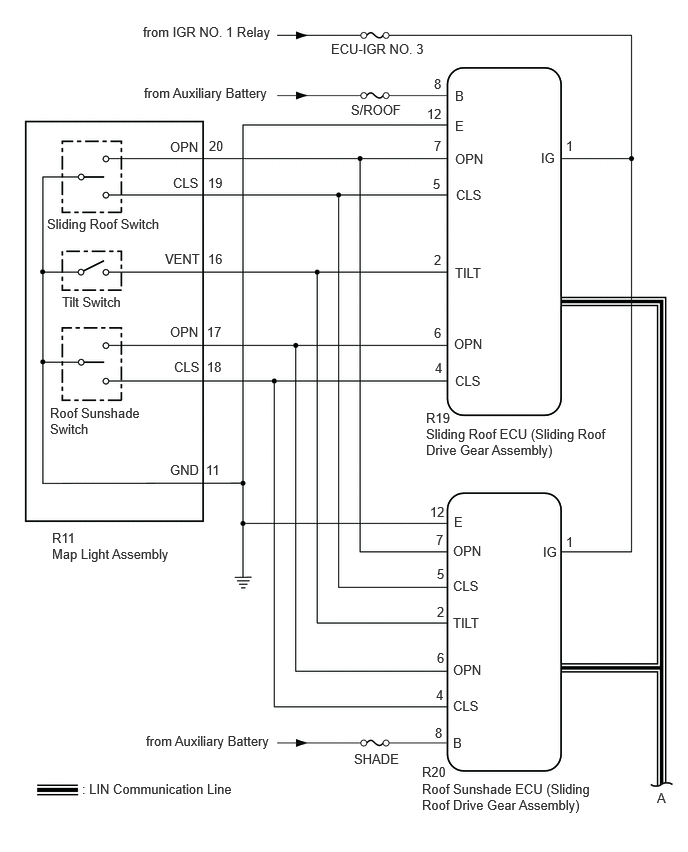

Fig 1: Panoramic Moon Roof System Does Not Operate [11/2023 - ] (1 Of 2)
GTY1178400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Panoramic Moon Roof System Does Not Operate [11/2023 - ] (2 Of 2)
GTY1178157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
