Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sliding Roof System - Diagnostic Codes & Symptom Tests >> Sliding Roof System >> DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [12/2019 - ] >> Wiring Diagram

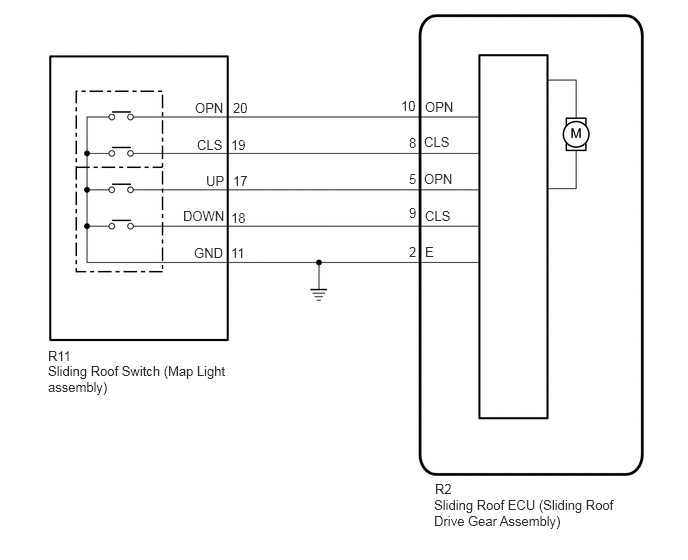

DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [12/2019 - ]: Wiring Diagram

GTY927608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
