Sliding Roof does not Move by Operating Sliding Roof Control Switch [12/2019 - 11/2023]: Wiring Diagram

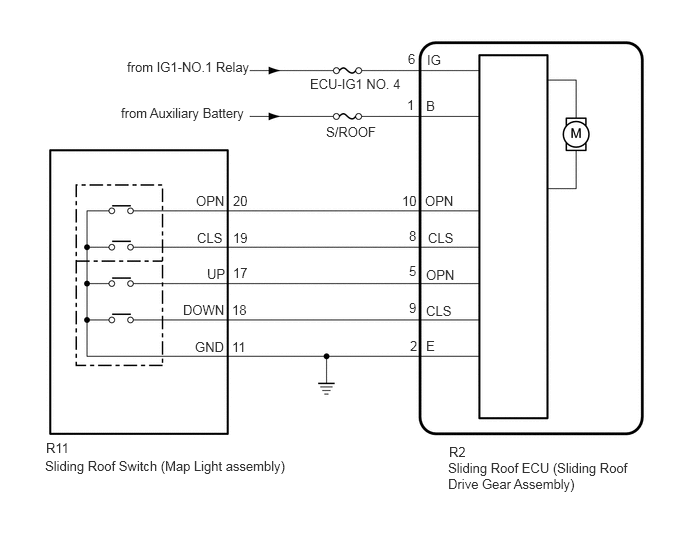

Fig 1: Sliding Roof Does Not Move By Operating Sliding Roof Control Switch [12/2019 - 11/2023]
GTY850241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
