Sliding Roof does not Move by Operating Sliding Roof Control Switch [11/2023 - ]: Wiring Diagram

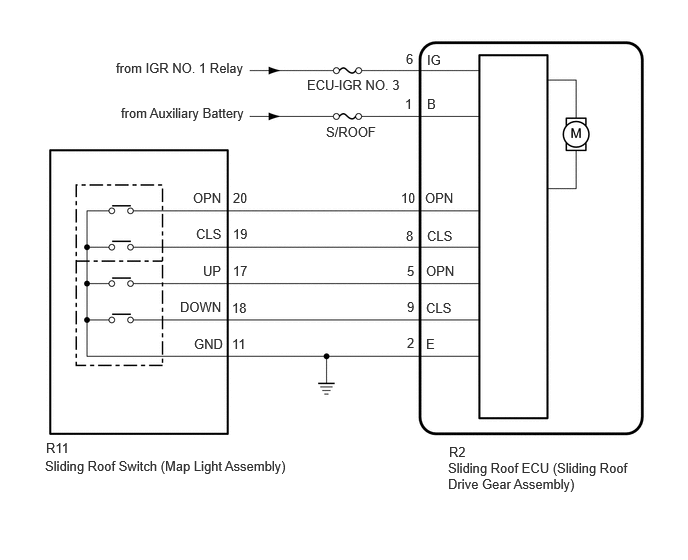

Fig 1: Sliding Roof Does Not Move By Operating Sliding Roof Control Switch [11/2023 - ]
GTY1178691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
