Parts Location [12/2019 - 11/2023]: Illustration

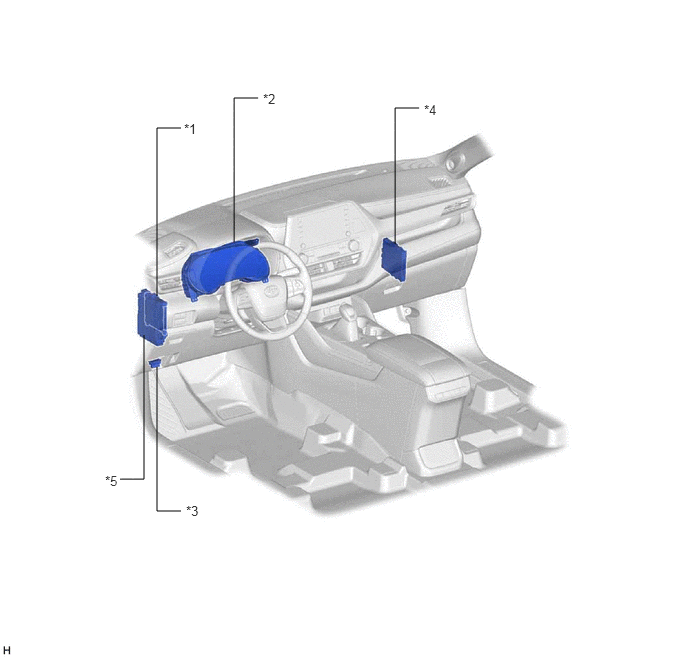

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | DLC3 | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE |
- | - |

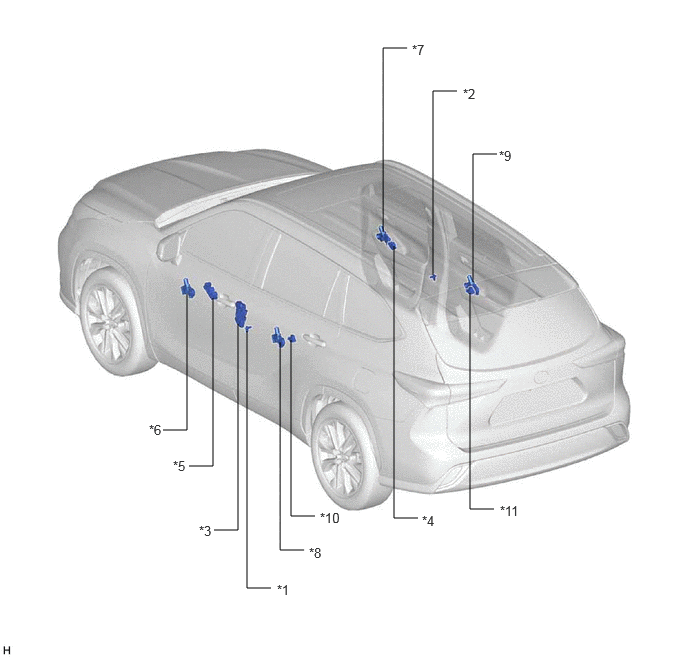

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | POWER WINDOW REGULATOR SWITCH ASSEMBLY |
| *5 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *6 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) |
| *7 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) | *8 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) |
| *9 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) | *10 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door) |
| *11 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for RH Door) | - | - |
