Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
DTC B2312: Power Window Switch Malfunction [12/2019 - ]
>>

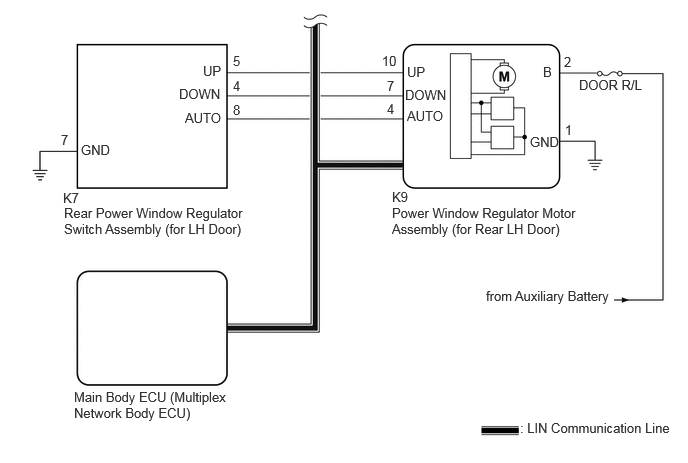

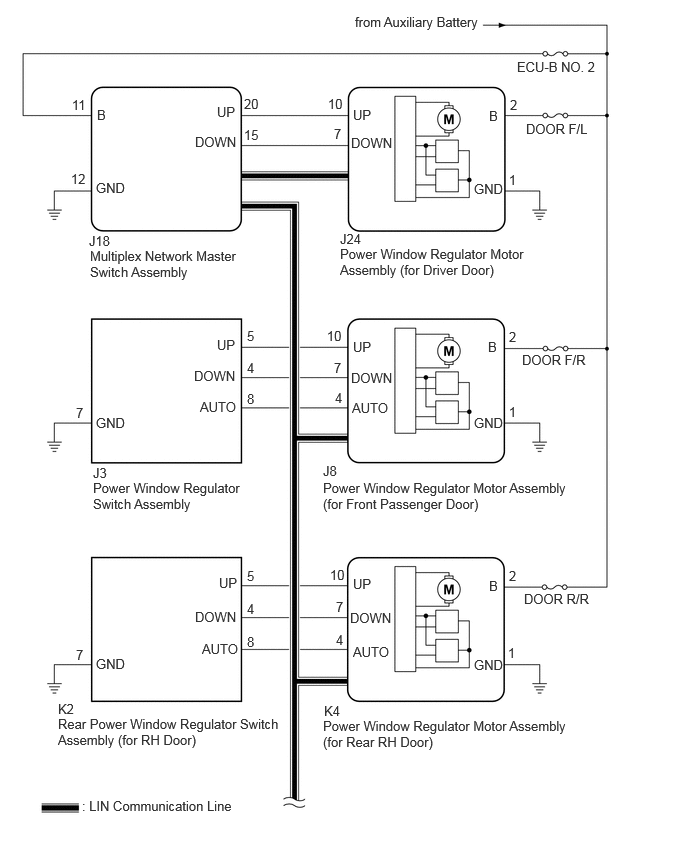

Wiring Diagram
DTC B2312: Power Window Switch Malfunction [12/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
